Dell EMC Quick Start
Page 5 of 8

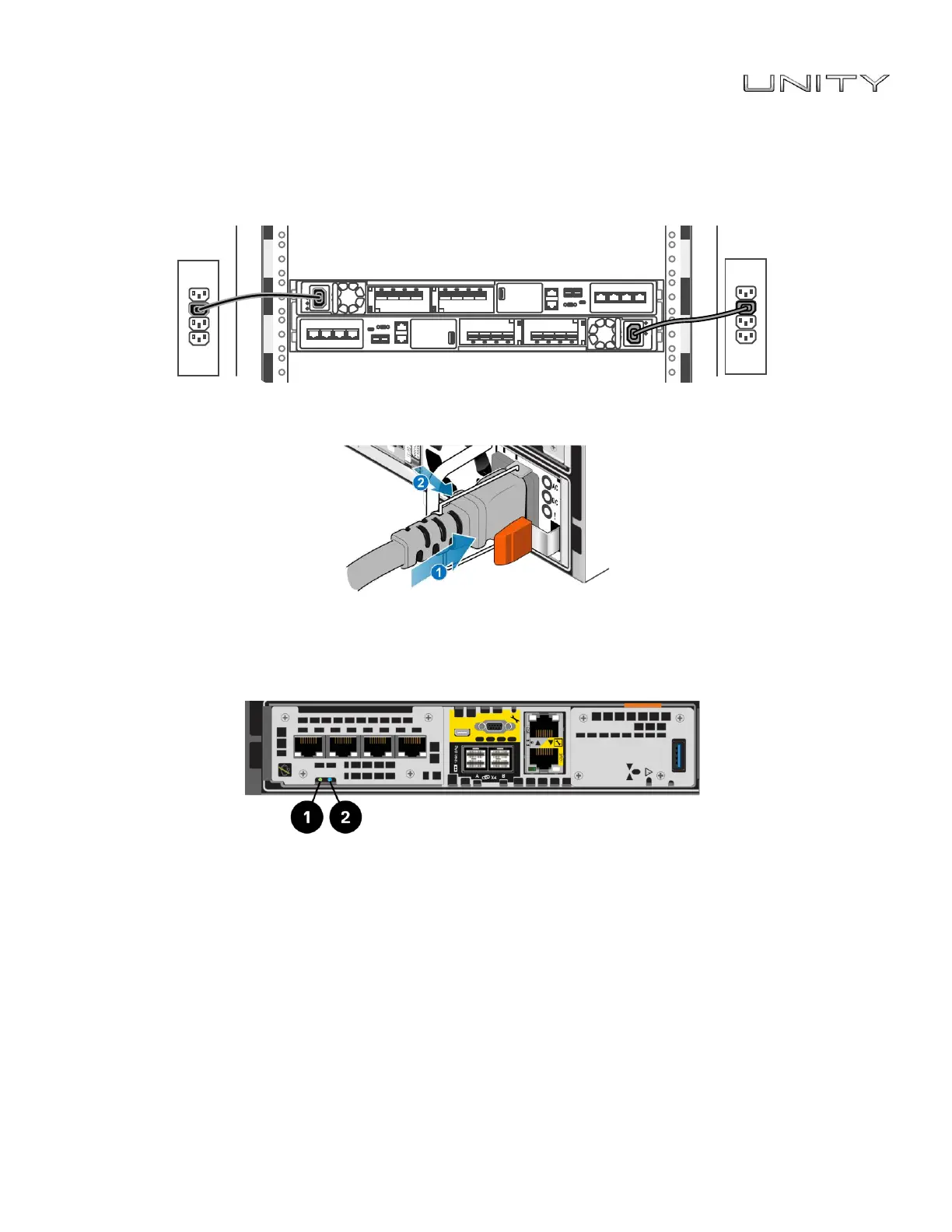

6. Power up
1.
cabinet.
2. Connect each DPE power cable to the system power component and to the PDUs.
3. Insert the power cables, and secure each cable to the system component with the cable clip.
After you plug in the power cables, the system immediately powers on.
4. Ensure that the service processor LEDs display the correct condition before continuing with system
initialization. The service processor power light (1) should be green, and the service processor fault
light (2) should be solid blue, or alternating blue and amber in three second intervals.
The initial system boot could take 15-60 minutes to complete, depending on factory configuration.
7. Assign a management address
Before you can configure and manage the Unity system, you must assign a network address to it.
Note: It can take the Connection Utility 10-15 minutes to recognize and populate the serial number.
Note: Disable any security software running on your workstation that may prevent the initialized system from
being detected.
There are two ways to assign a management address:
• Assign a static address to the system. Download and install the Connection Utility software. Then,
run the Connection Utility on a computer with access to the subnet where you installed your Unity
system. The Connection Utility requires the following:
o Your system serial number, which identifies the system on the network.
