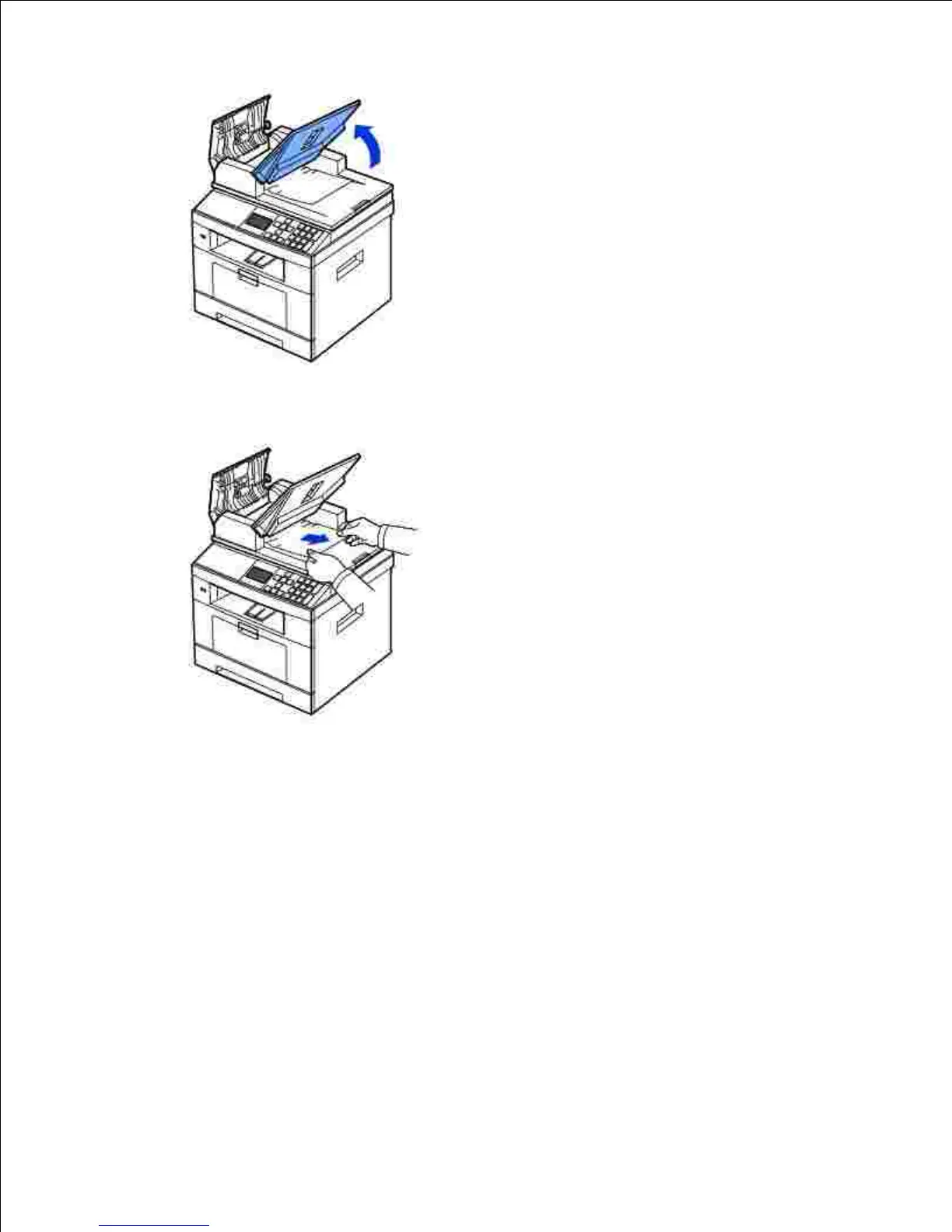

Remove the document by gently pulling it out.c.

Close the DADF cover and the document input tray. Then load the documents back into the

DADF.

If the document is jammed in the duplex path:

Open the DADF cover.a.
