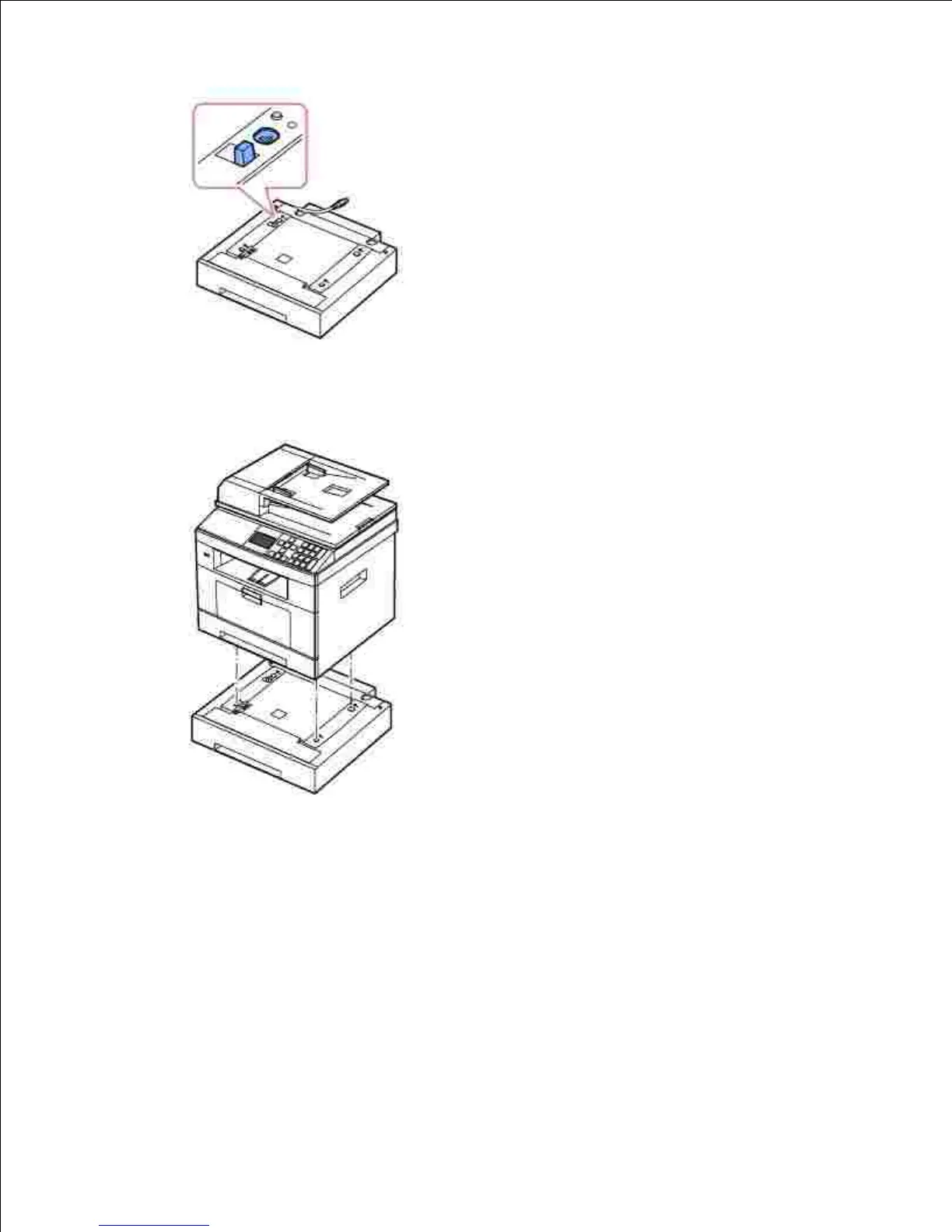

Place the printer over the tray, aligning the feet on the printer with the alignment pins in the optional

tray 2.

Connect the cable into the connector on the back of the printer.5.
