Removing the power-adapter port
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Prerequisites
1 Remove the base cover.
2 Follow the procedure from step 1 to step 6 in Removing the heat sink.
Procedure

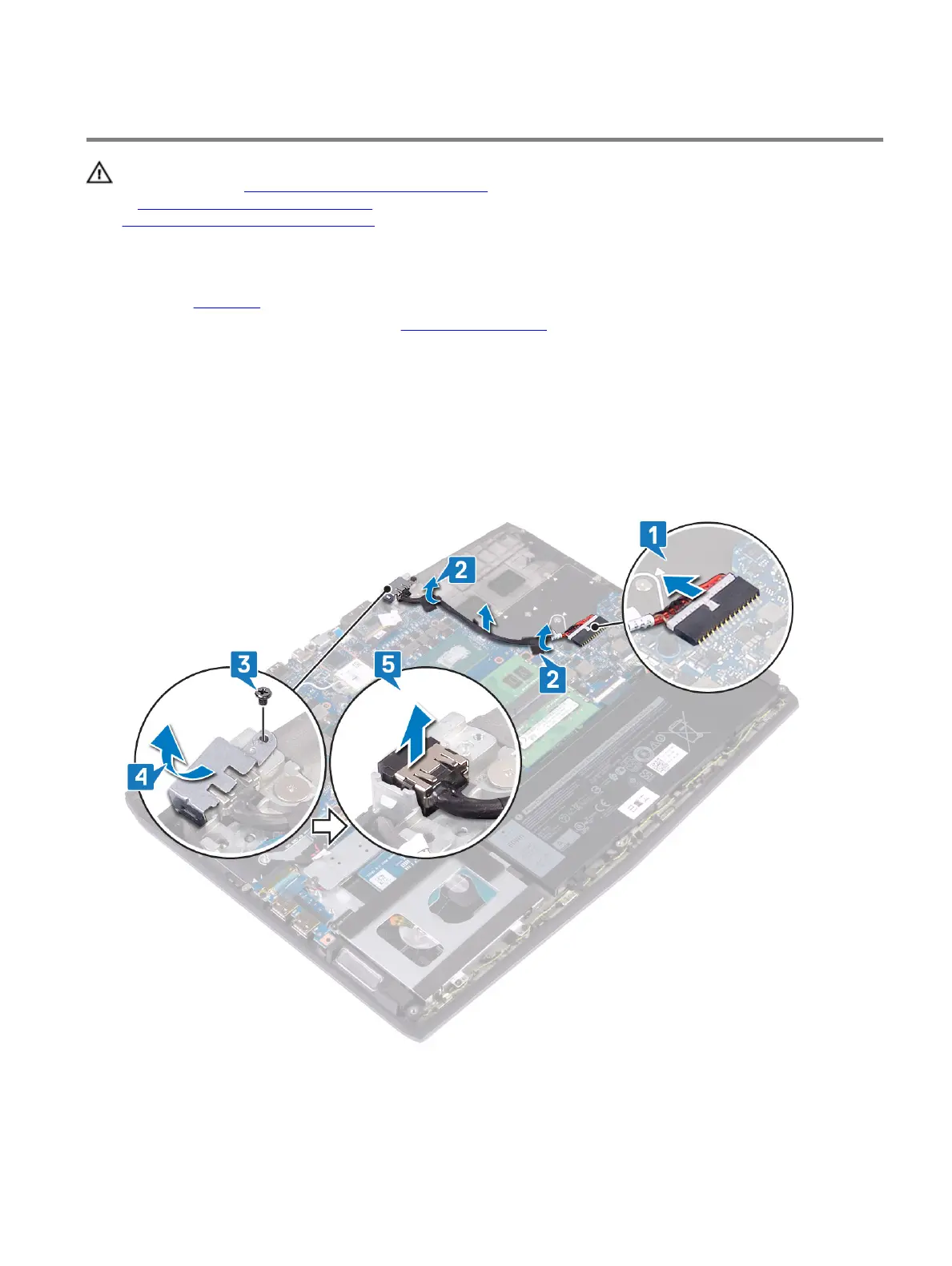

1 Disconnect the power-adapter port cable from the system board.
2 Peel the tape that secures the power-adapter port cable to the system board.
3 Remove the screw (M2x3) that secures the power-adapter port bracket to the system board and palm-rest assembly.
4 Rotate the power-adapter port bracket o the power-adapter port.
5 Lift the power-adapter port along with its cable o the palm-rest assembly.
