Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws,
and then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw
type is restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surface when
replacing a component.
NOTE: Screw color may vary with the conguration ordered.

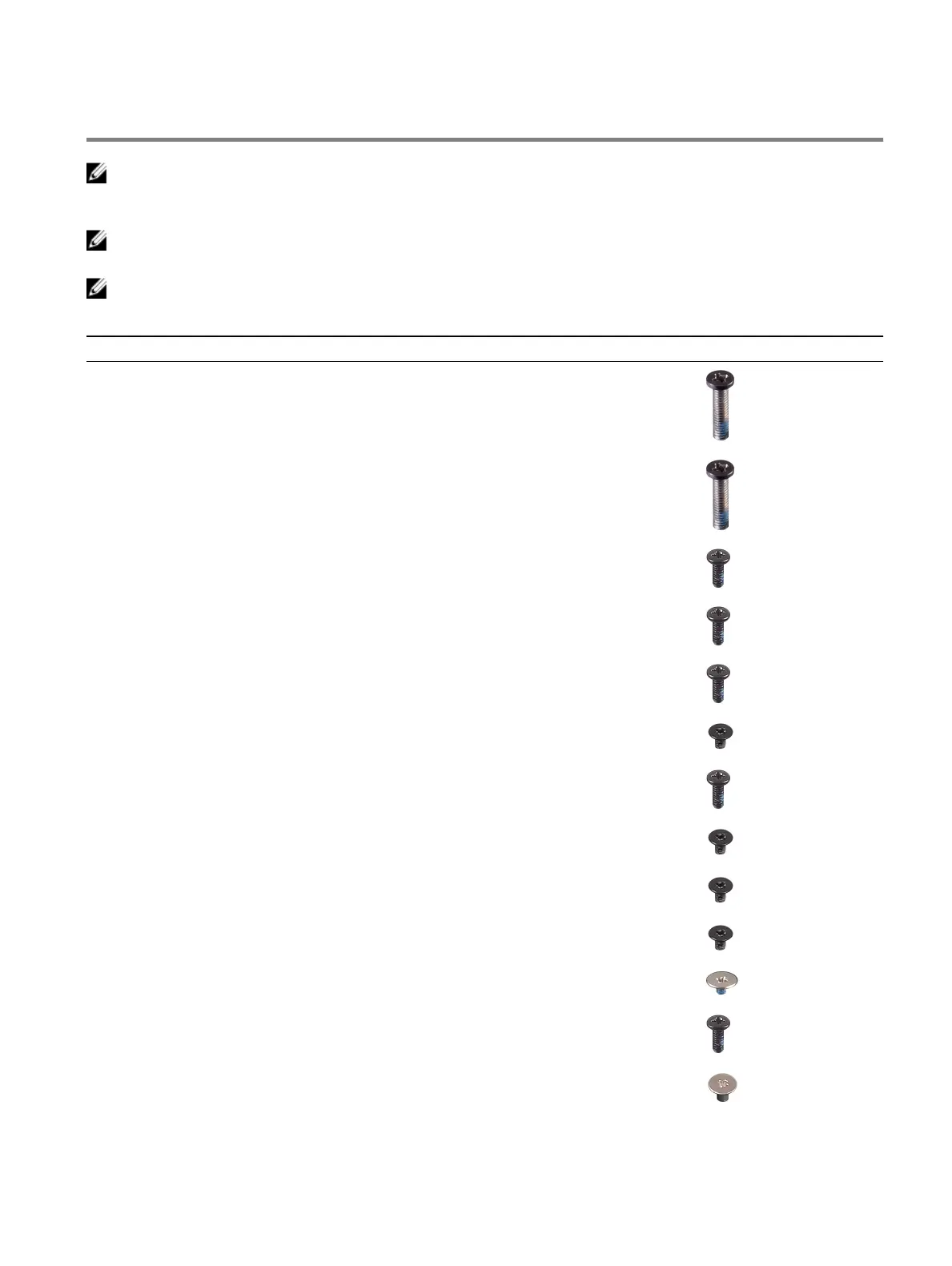

Table 1. Screw list
Component Secured to Screw type Quantity Screw image
Base cover Palm-rest assembly M2.5x10 6
Base cover Palm-rest assembly M2.5x10 2
Battery (Half-length) Palm-rest assembly M2x5 4
Battery (Full-length) Palm-rest assembly M2x5 6
Hard-drive assembly Palm-rest assembly M2x5 4
Heat-sink assembly System board M2x3 5
Heat-sink assembly System board M2x5 1
Fan Heat sink M2x3 2
Wireless-card bracket System board M2x3 1
Solid-state drive bracket Palm-rest assembly M2x3 1
Solid-state drive Solid-state drive bracket M2x2 1
I/O board Palm-rest assembly M2x5 1
Touchpad Palm-rest assembly M2x2.5 4
14
