Dell Alienware m15 - Page 82

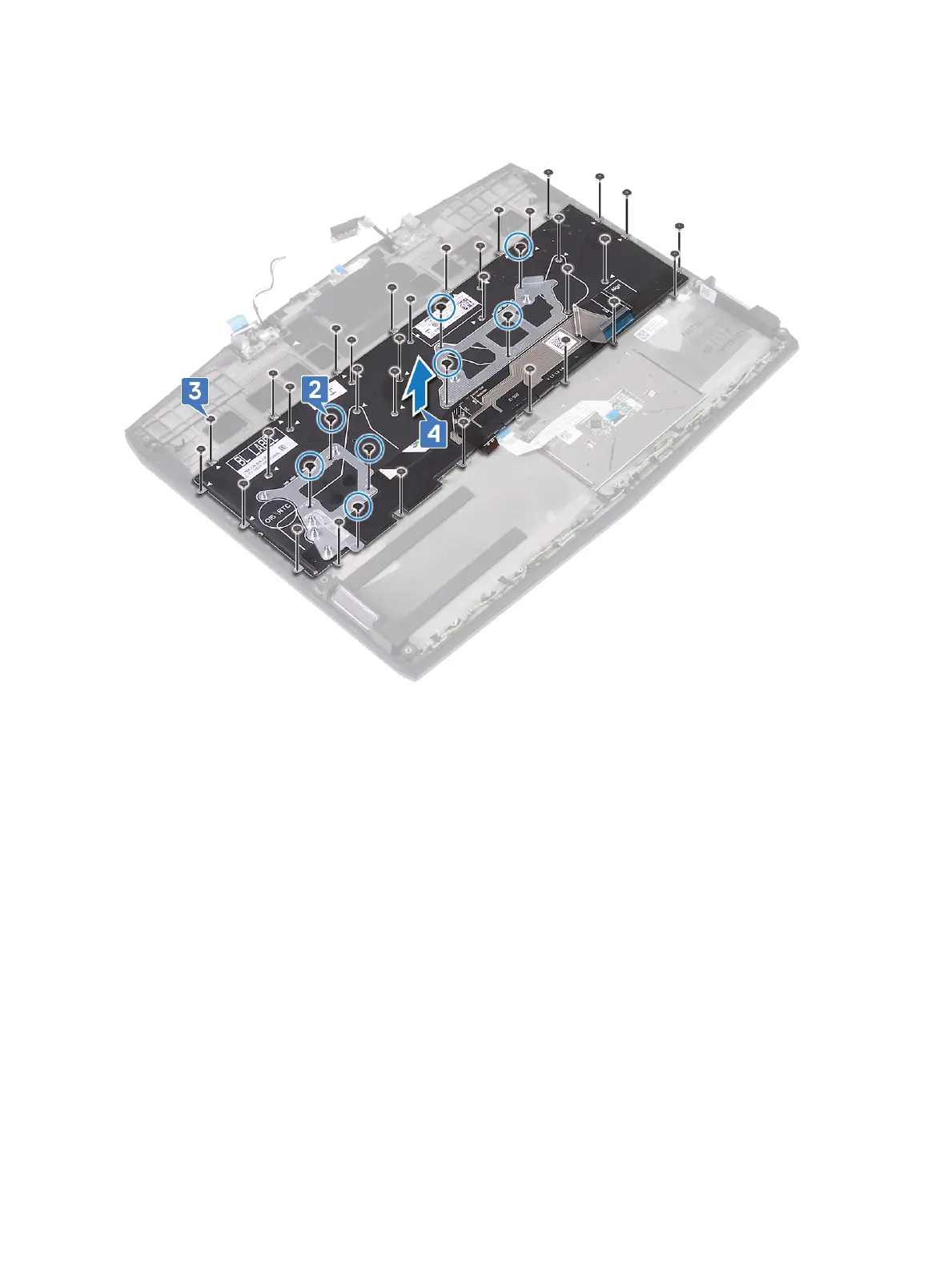

2 Remove the eight screws (M1.2x2.2) that secure the keyboard bracket to the palm-rest assembly.
3 Remove the 33 screws (M1.2x1.9) that secure the keyboard to the palm-rest assembly.
4 Lift the keyboard o the palm-rest assembly.
82
