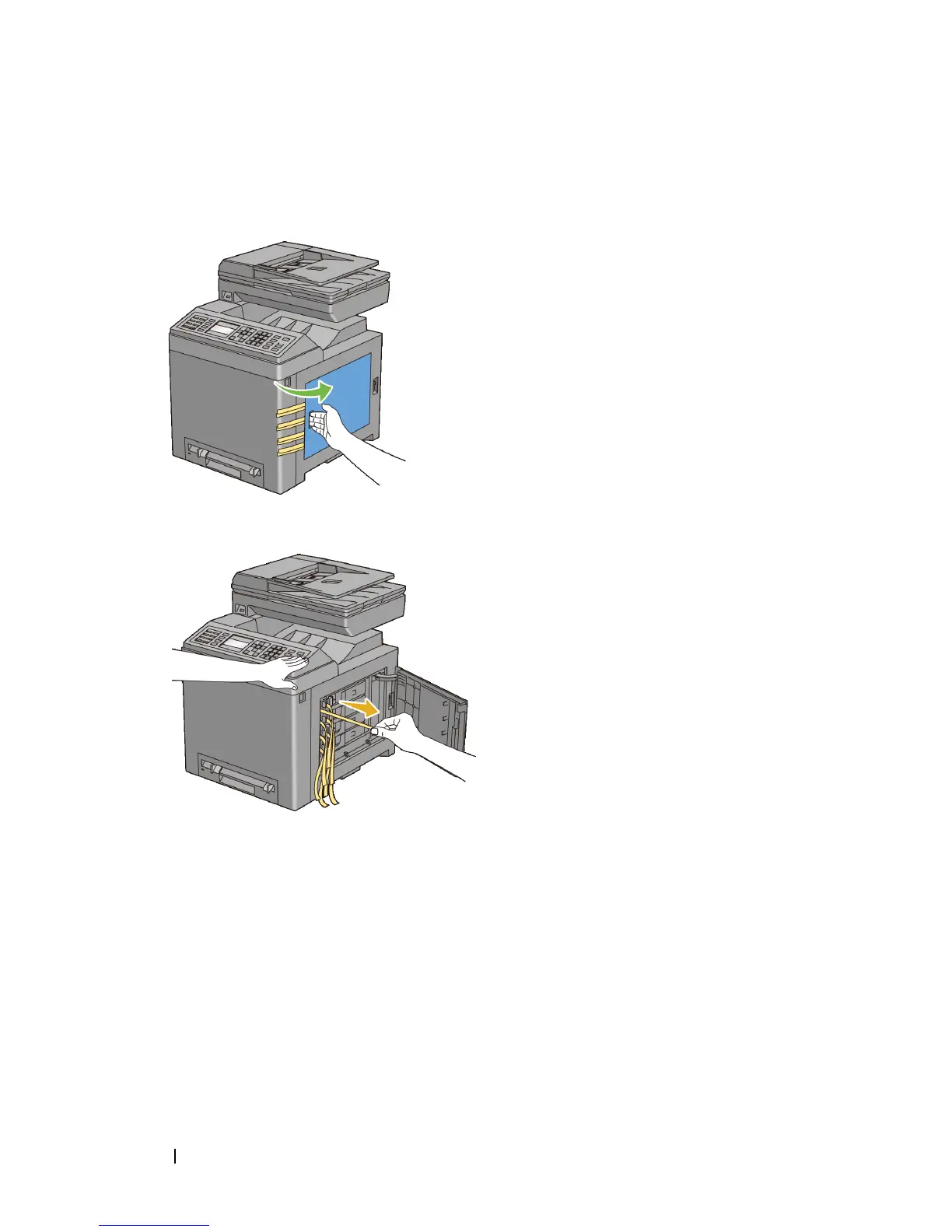

Removing the Print Head Device (PHD) Ribbons
1
Open the toner access cover.
2
Completely pull out the eight yellow ribbons.
Installing the Toner Cartridges
1
Press and slide the blue latches of the four toner cartridges to the locked
position.
