Dell E-Port Plus User Manual

Using the Dell™ E-Port Plus 11

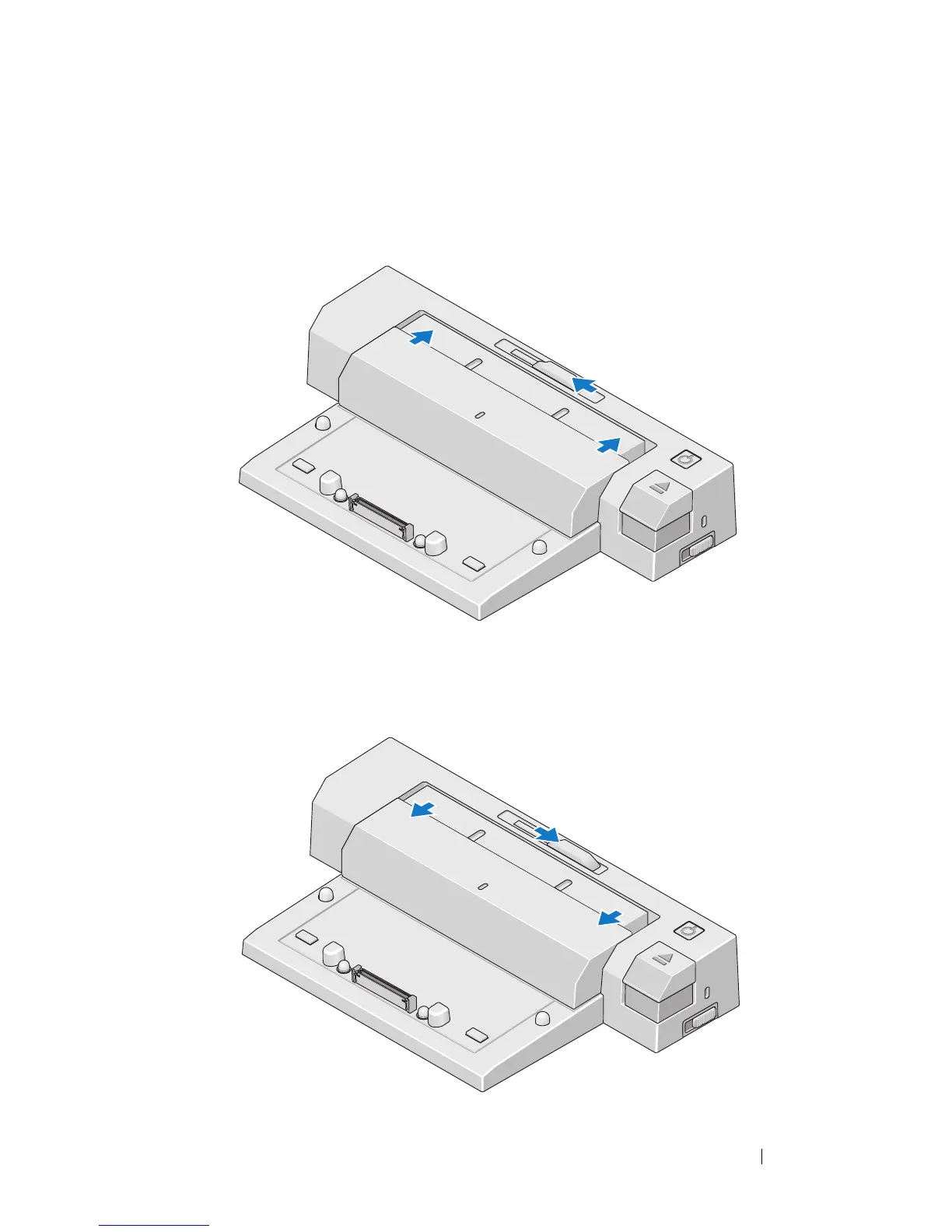

3 Retract the battery bar if your laptop has a battery that extends beyond the
back of the laptop. Slide the battery bar adjuster to the left to retract the
battery bar.
4 If your laptop does not have a battery extending from the rear of the laptop
body, extend the battery bar by sliding the battery bar adjuster to the right.

Dell E-Port Plus Specifications

General

Ethernet	1 x Gigabit Ethernet
Compatibility	Dell Latitude, Precision, and XPS
Video Ports	1 x VGA, 2 x DisplayPort
Audio Ports	1 x Headphone/Microphone combo jack
Security Slot	Kensington Security Slot
Weight	1.7 lbs (0.77 kg)
Power Adapter	130W
