22"LCD Color Monitor Dell E228WFPc
18
4.4 Panel Specification
LTM220M1-L01 is a color active matrix liquid crystal display (LCD) that uses amorphous silicon TFT (Thin Film
Transistor) as switching components. This model is composed of a TFT LCD panel, a driver circuit and a back light
unit. The resolution of a 22” is 1680 x1050 and this model can display up to 16.7 millions colors.
Features
High contrast ratio, high aperture structure
TN (Twisted Nematic) mode
Wide Viewing Angle
High speed response
WSXGA+ (1680 x 1050 pixels) resolution
Low power consumption
DE (Data Enable) only mode
LVDS (Low Voltage Differential Signaling) interface (2pixel/clock)
Compact Size Design
RoHS, TCO 03’ compliance

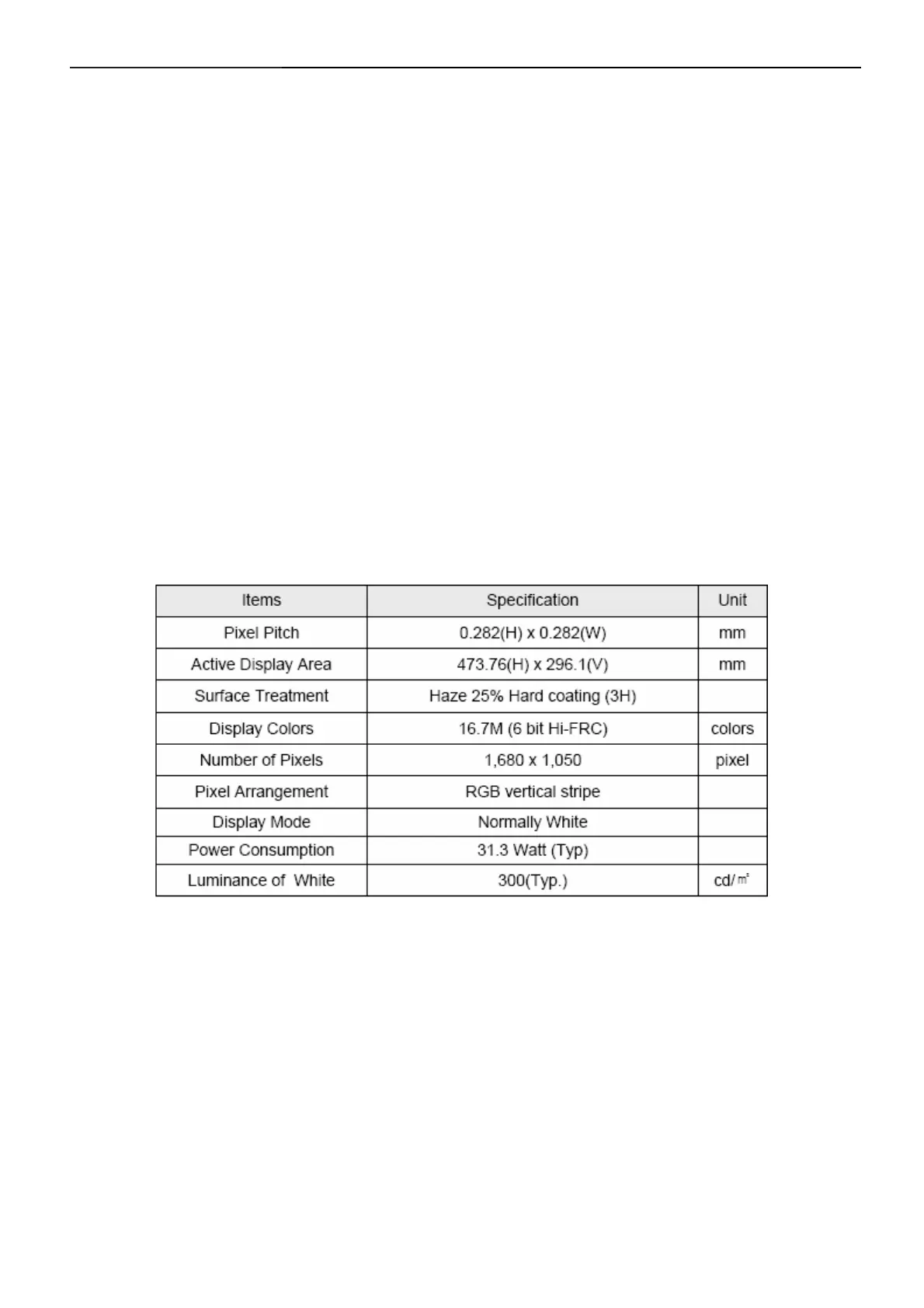

4.4.1 Display Characteristics
