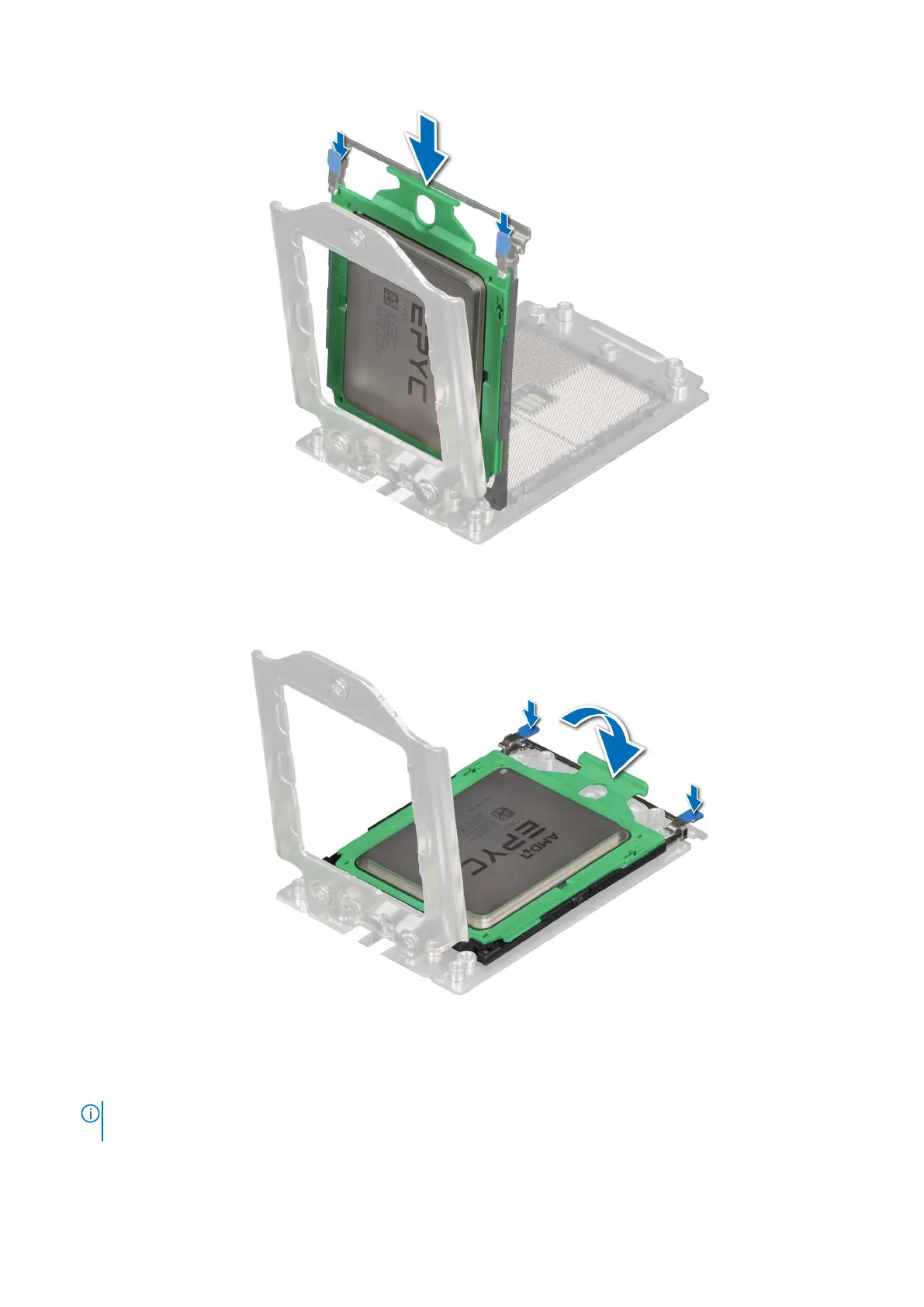

Figure 48. Placing the processor tray into the rail frame
2. Push the rail frame down until the blue latches lock into place.
Figure 49. Closing the rail frame
3. Secure the force plate to the processor socket base by tightening the screws in the sequence 1, 2, and 3. When all three
screws are fully threaded, the socket is then actuated. The three screws are tightened to a torque value of 12.0 ± 1.0 lbf-in.
NOTE:
Press the force plate while tightening the screws to avoid tilting of the processor cover out of the processor
socket.
Installing and removing system components 53
