3. System status LED
Table 1. System LED Displays (Utility and I/O Panel)
Label LED Color/Display Description
Locator beacon LED
Off
Blue
No activity
System beacon/locator
Alarm LED
Off
Amber solid
Red solid
No alarm
Minor alarm
Critical alarm
System status LED
Off
Green solid
Green blinking
Amber solid
No power
Normal operation
System is booting
System in card problem state
Master LED
Green solid
Green blinking
Off
Switch in Stacking Master mode OR
Switch in Standalone mode
Switch in Stacking Standby mode
Switch in Stacking Member mode
PSU status LED
Green solid
Off
Normal operation
Power not present
Fan status LED
Green solid
Off
Normal operation
Power not present

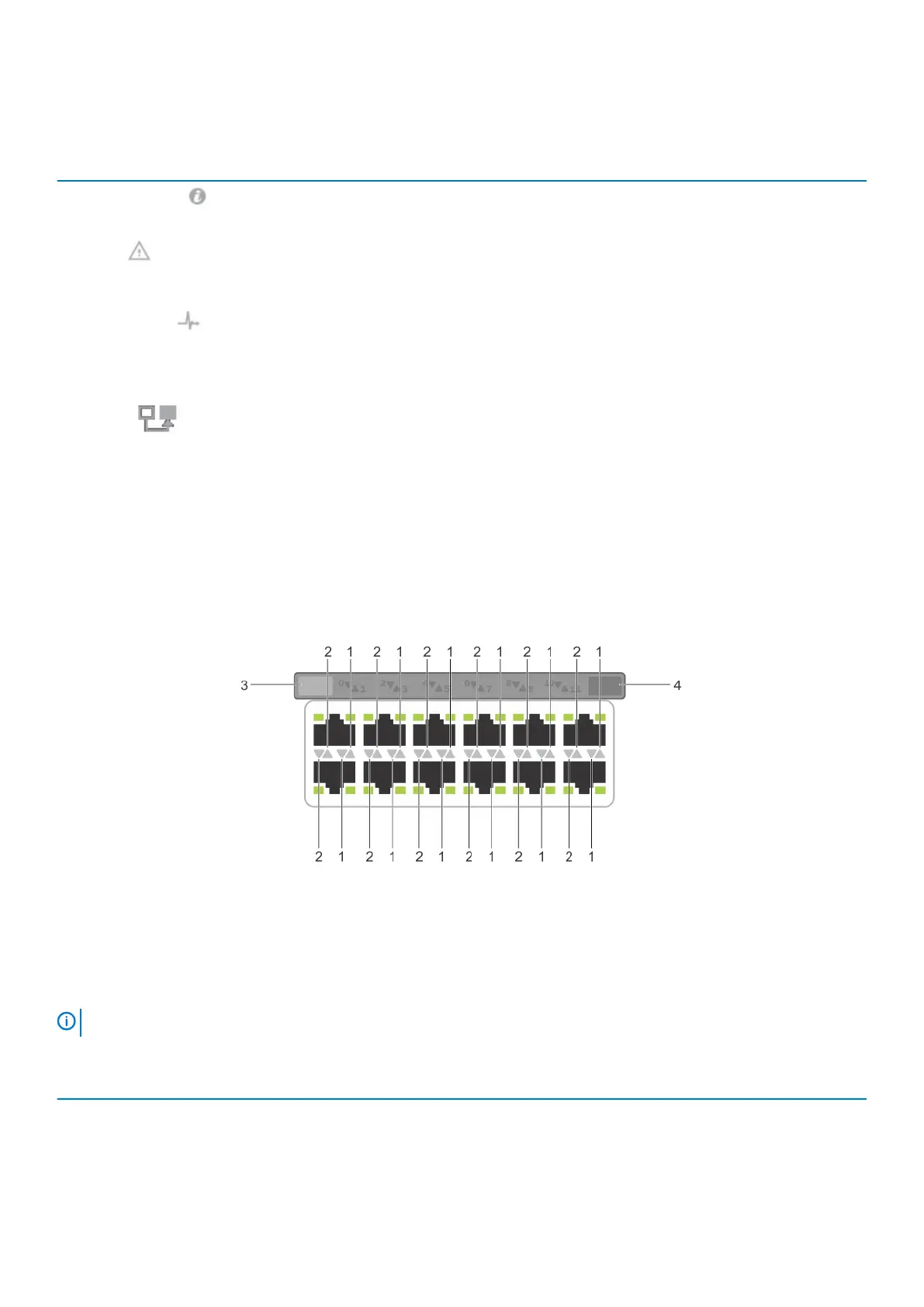

Figure 7. Module LEDs
1.
Port locator beacon LED 2. Port link/activity LED
3. Module locator beacon LED 4. Module status LED
NOTE: The downward and upward pointing triangles denote the lower and upper port LEDs respectively.
Table 2. Ethernet Port/Module LEDs
Label LED Color/Display Description
Port locator beacon LED
Off
Blue
No activity
Port beacon/locator
Port link/activity LED
Off No link or interface disabled
12 Hardware Overview
