Dell EMC S5000 - Installing a Fibre Channel Module

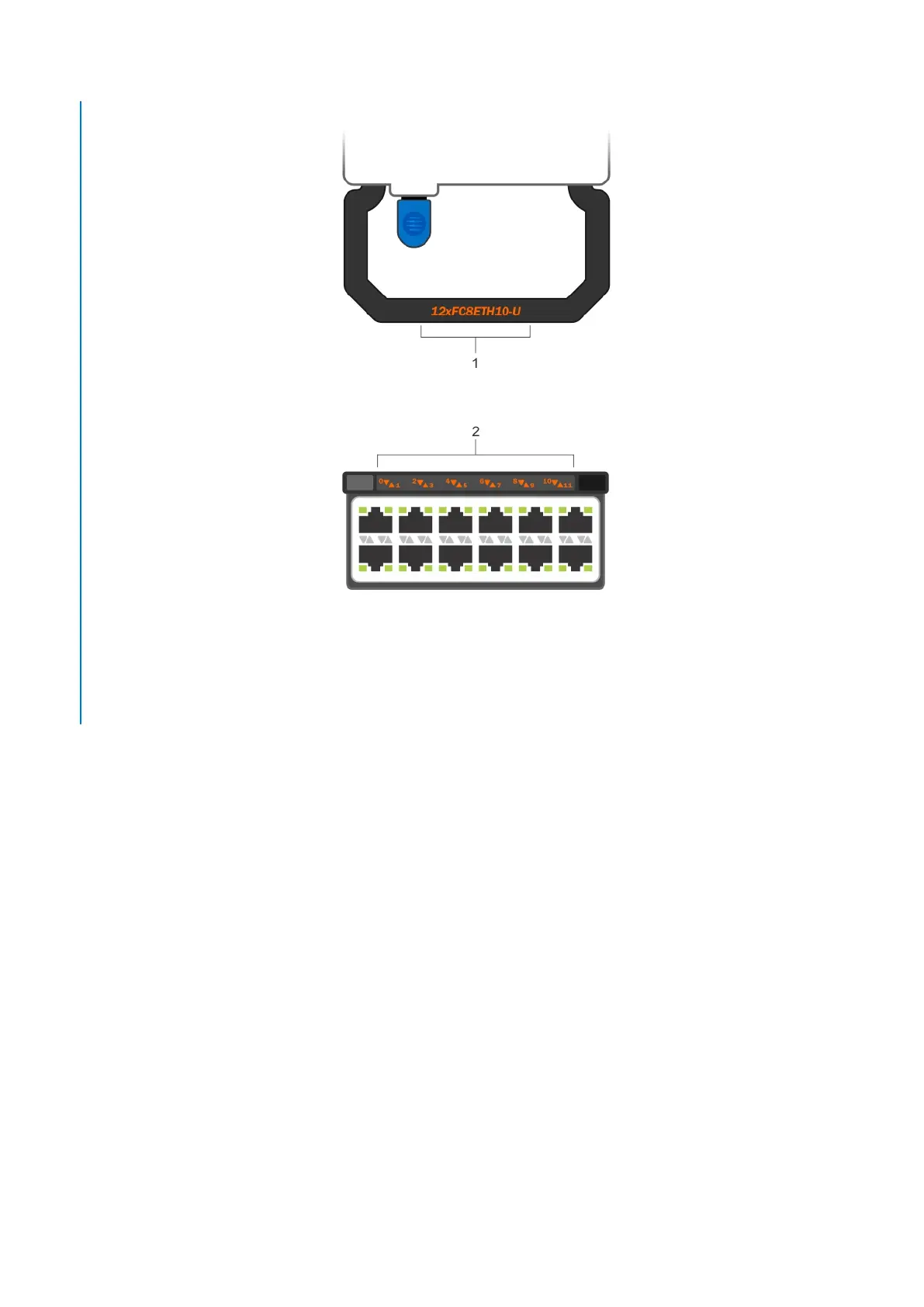

Figure 13. Part name and Port number on the Fibre Channel Module Handle
1. Part Name
2. Port Number
Installing a Fibre Channel Module
1. Use the grab handle on the Fibre Channel module to slide it into the switch module slot.
2. Connect any network interface cables to the attached module.
Installation
21
