Hardware Overview
This section contains information about device characteristics and modular hardware configurations for the S5000.
The S5000 has the following physical dimensions:
• Height: 1.71 inches (43.5 mm)
• Width: 17.4 inches (441.9 mm)
• Depth: 28 inches (711.2 mm)
The S5000 has a chassis design with 640Gbps switching bandwidth.
The system also provides one DB9 RS-232 console port with YOST RJ-45 pinout and a dedicated Ethernet service port for out-of-band
(OOB) management functions.
Topics:
• I/O Panel
• Utility Panel
• Port Numbering Convention
• System Status
I/O Panel
All fixed data ports (4 × 40GbE quad small form-factor pluggable plus [QSFP+] ports) and the four slots for pluggable modules are on the
I/O panel.
The I/O panel includes:
• Pluggable Modules
• 12-Port Ethernet Module (1G/10G speeds)
• 12-Port FC/Ethernet Universal Module (2G/4G/8G/10G speeds).
• 4 × 40GbE QSFP+ Ports and light emitting diodes (LEDs)

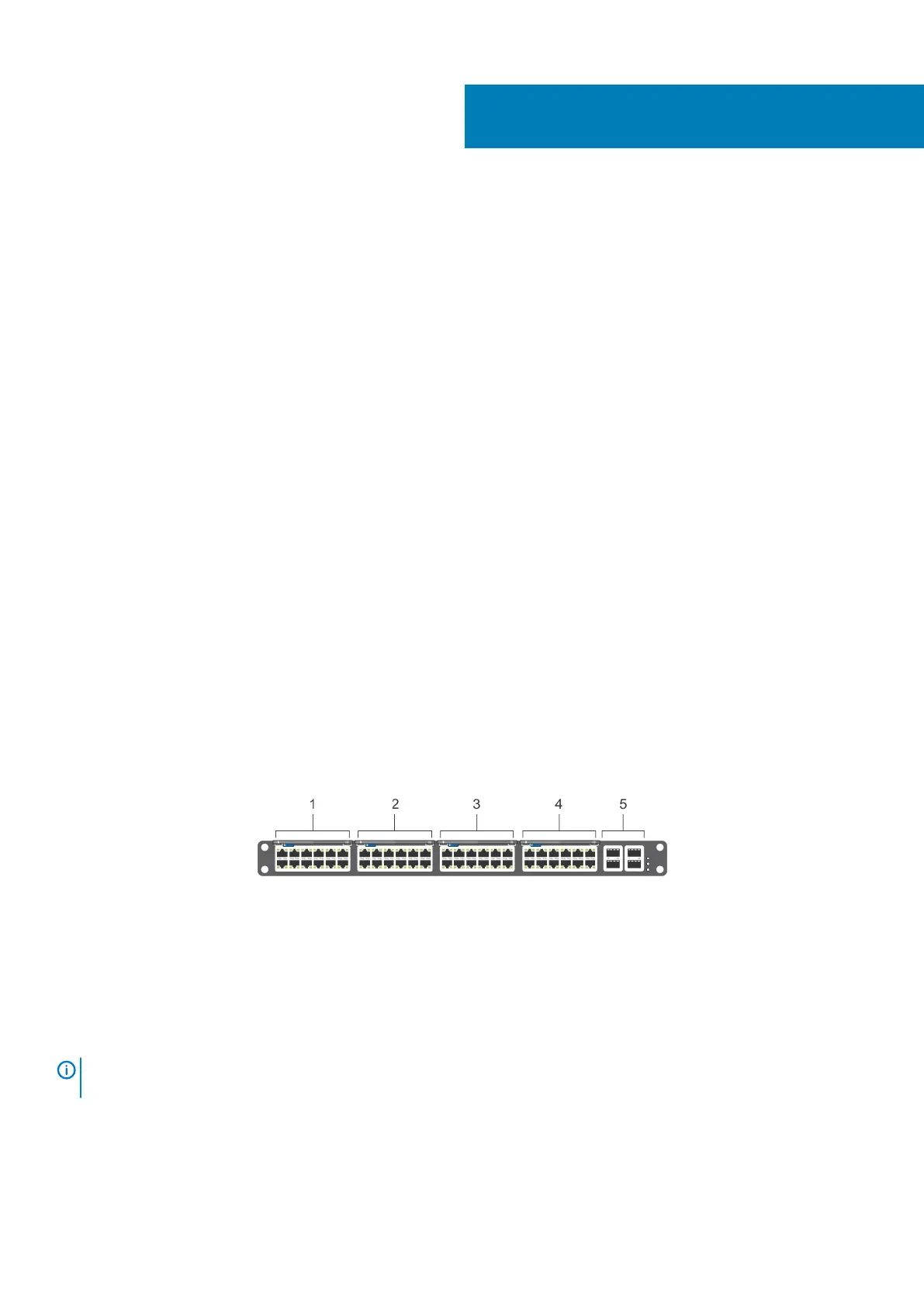

Figure 2. S5000 I/O Panel
1.
Slot 0 (supports Ethernet and Fibre Channel modules) 2. Slot 1 (supports only Ethernet modules)
3. Slot 2 (supports only Ethernet modules) 4. Slot 3 (supports only Ethernet modules)
5. Four 40GbE QSFP+ ports (each port ALSO supports 4 × 10GbE
mode)
NOTE: The LED displays for the system status are on both sides of the chassis. The fan and power status LEDs are on
the Utility panel.
4
Hardware Overview 9
