Steps

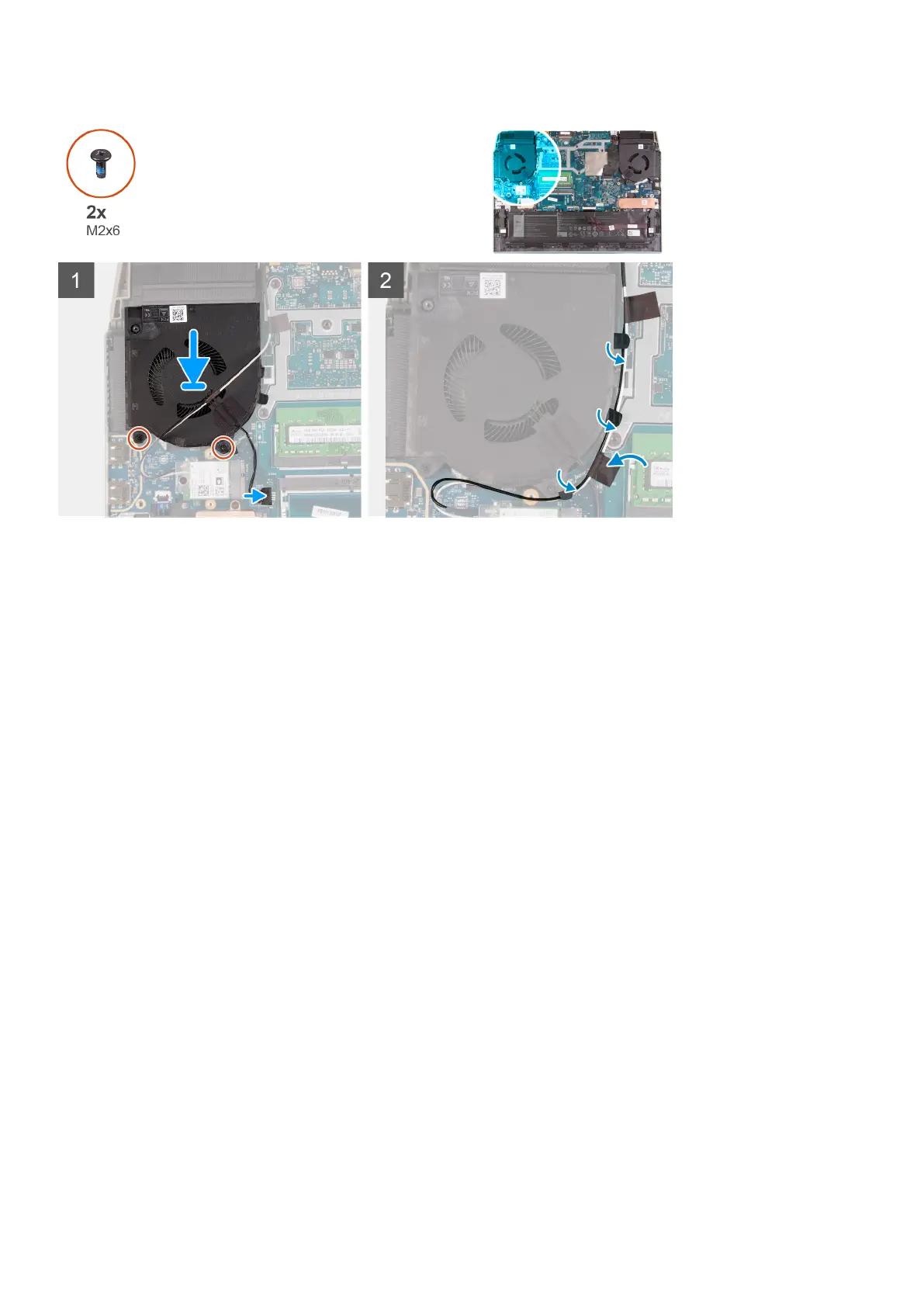

1. Align and place the right fan on the palm-rest and keyboard assembly.
2. Replace the two (M2x6) screws to secure the right fan to the palm-rest and keyboard assembly.
3. Connect the left-fan cable to the system board.
4. Route the wireless-card cable through the routing guides on the fan.
5. Adhere the tapes that secures the wireless-card cable to the system board.
Next steps
1. Install the rear cover
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Removing the left fan
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the rear cover.
About this task
The following image indicates the location of the left fan and provides a visual representation of the removal procedure. The
orientation is based on the position of the fan when you are working on your computer.
