Power button
Removing the power button
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the rear cover.
5. Remove the solid-state drive .
6. Remove the solid-state drive 2.
7. Remove the wireless card.
8. Remove the memory module.
9. Remove the right fan.
10. Remove the left fan.
11. Remove the system board.
NOTE: System board can be removed with the heat sink, I/O board, and USB board attached.
About this task

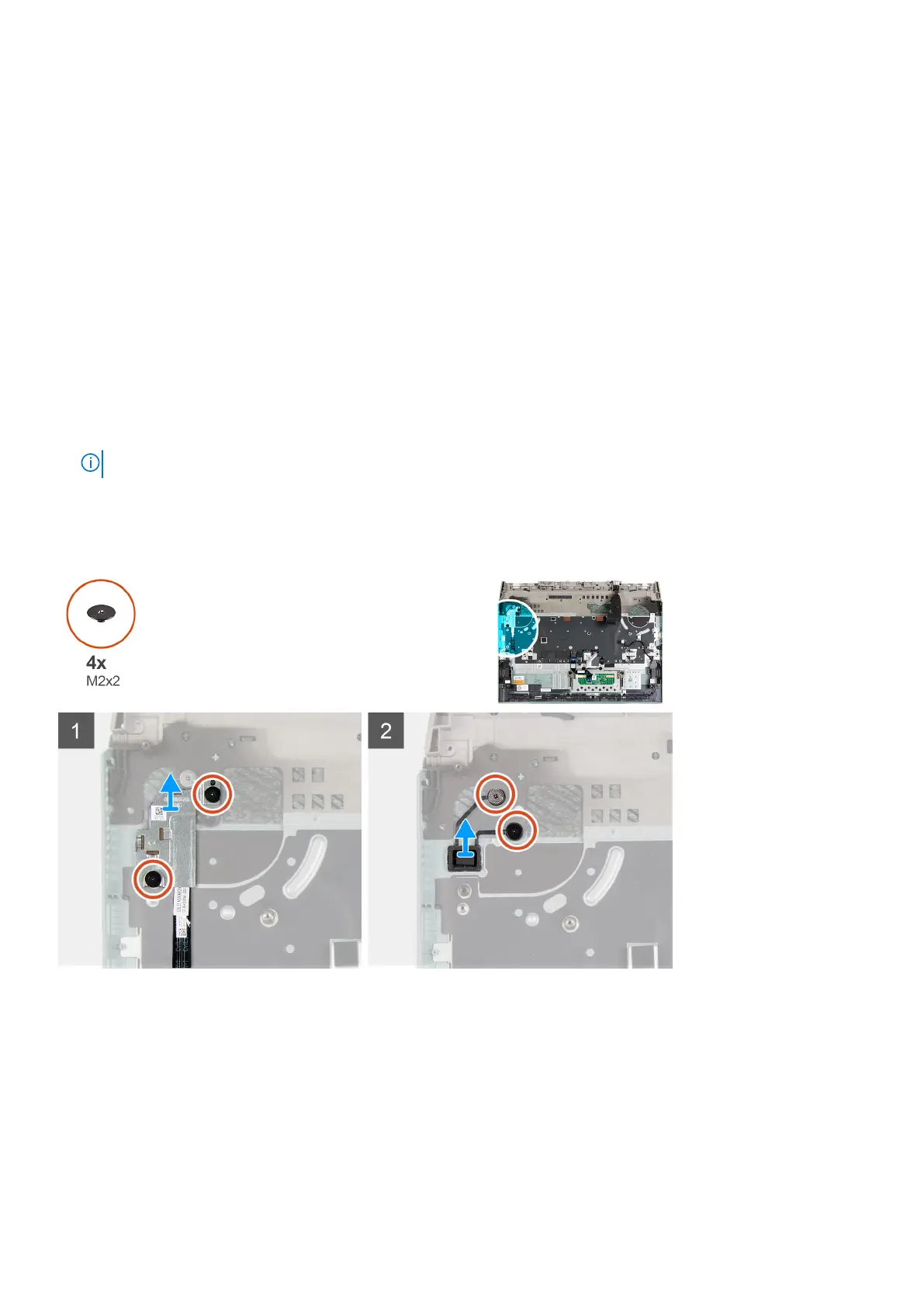

The following images indicate the location of the power button and provide a visual representation of the removal procedure.
Steps
1. Remove the two screws (M2x2) that secure the power-button shield to the palm-rest and keyboard assembly.
2. Lift the power-button shield off the palm-rest and keyboard assembly.
3. Remove the two screws (M2x2) that secure the power button to the palm-rest and keyboard assembly.
4. Lift the power button off the palm-rest and keyboard assembly.
