Steps

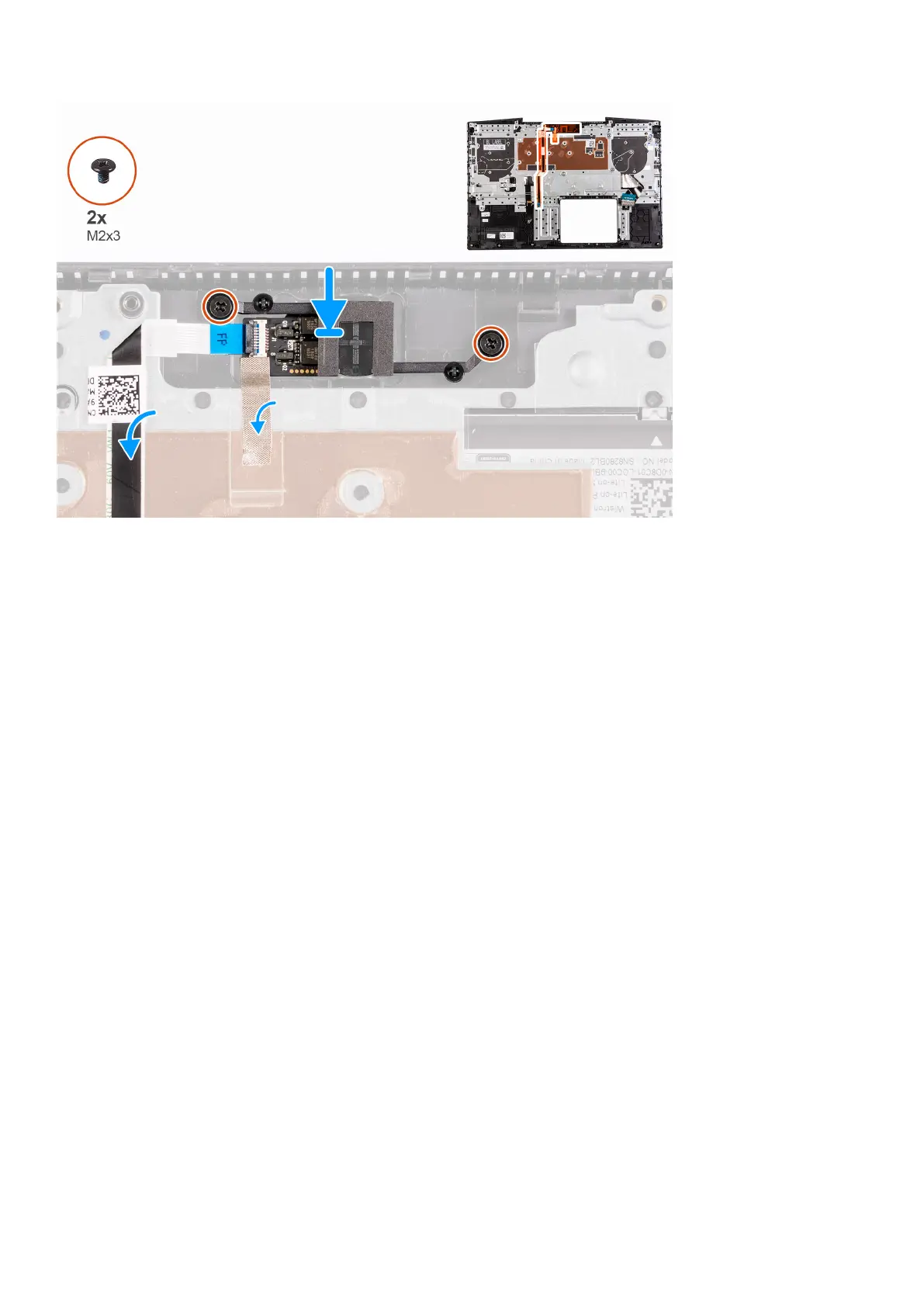

1. Align the screw holes on the power button with fingerprint reader with the screw holes on the palm-rest and keyboard assembly.
2. Replace the two screws (M2x3) that secure the power button with fingerprint reader to the palm-rest and keyboard assembly.
Next steps
1. Install the system board.
2. Install the hard drive.
3. Install the power-adapter port.
4. Install the heat sink.
5. Install the right fan.
6. Install the WLAN card.
7. Install the solid-state drive/Intel Optane.
8. Install the battery.
9. Install the base cover.
10. Follow the procedure in After working inside your computer.
Touchpad
Removing the touchpad
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the solid-state drive/Intel Optane.
5. Remove the WLAN card.
6. Remove the right fan.
7. Remove the heat sink.
8. Remove the hard drive.
9. Remove the display assembly.
56
Removing and installing components
