Removing and installing components
Recommended tools
The procedures in this document may require the following tools:
Phillips screwdriver #1
Flat-head screwdriver
Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws,
and then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type
is restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surface when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.

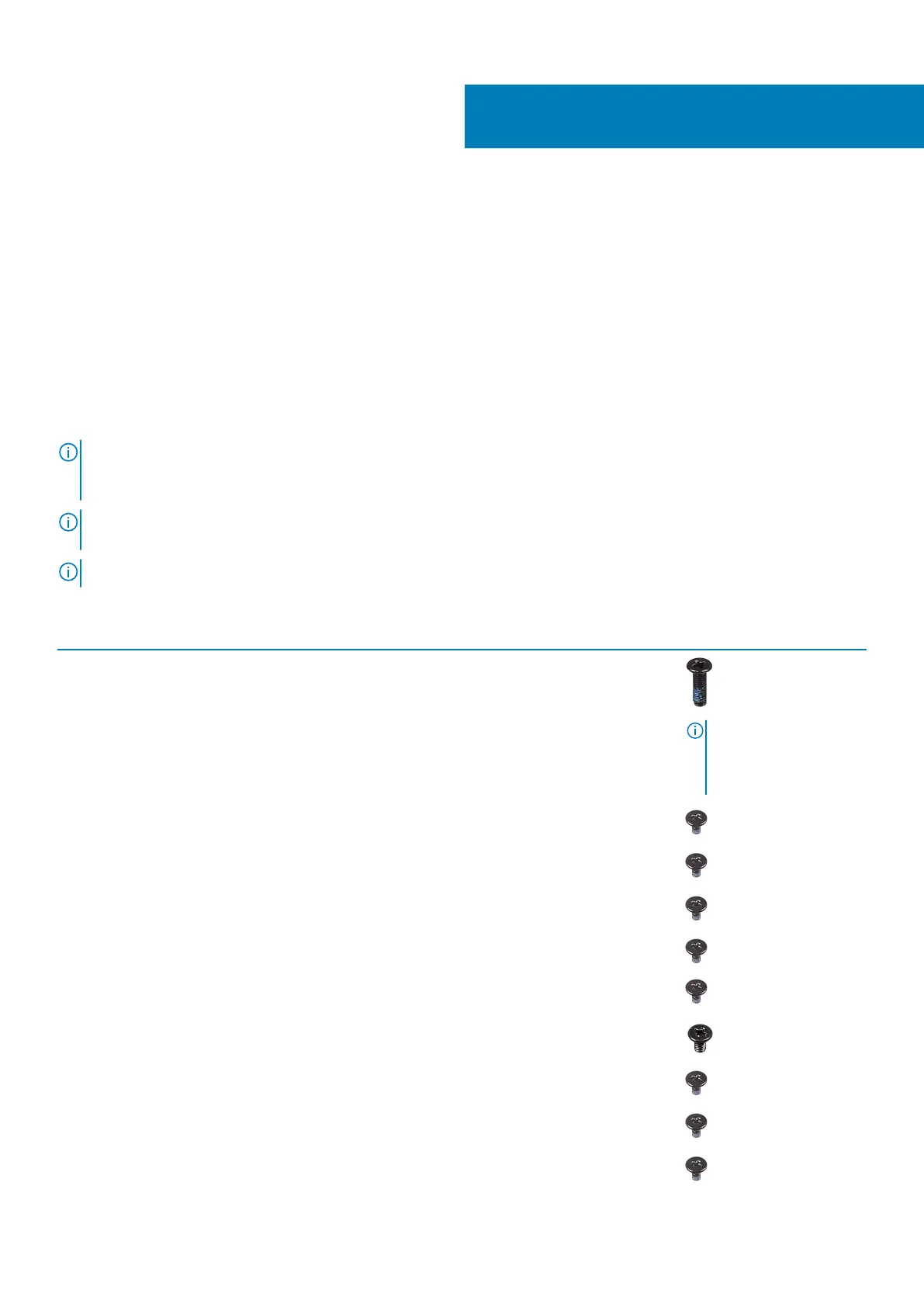

Table 1. Screw list
Component Secured to Screw type Quantity Screw image
Base cover Palm-rest and keyboard
assembly
M2x7 6
NOTE: Screw color
may vary depending on
the configuration
ordered.
Light bar(80 W
configuration only)
Base cover M2x3 7
3-cell Battery Palm-rest and keyboard
assembly
M2x3 2
4-cell Battery Palm-rest and keyboard
assembly
M2x3 3
Solid-state drive Solid-state drive bracket M2x3 1
Hard-drive assembly Palm-rest and keyboard
assembly
M2x3 3
Hard-drive bracket Hard-drive assembly M3x3 4
Left fan Palm-rest and keyboard
assembly
M2x3 2
Right fan Palm-rest and keyboard
assembly
M2x3 2
Wireless-card bracket System board M2x3 1
2
Removing and installing components 9
