Steps
1. Slide the rear cover toward the system board.

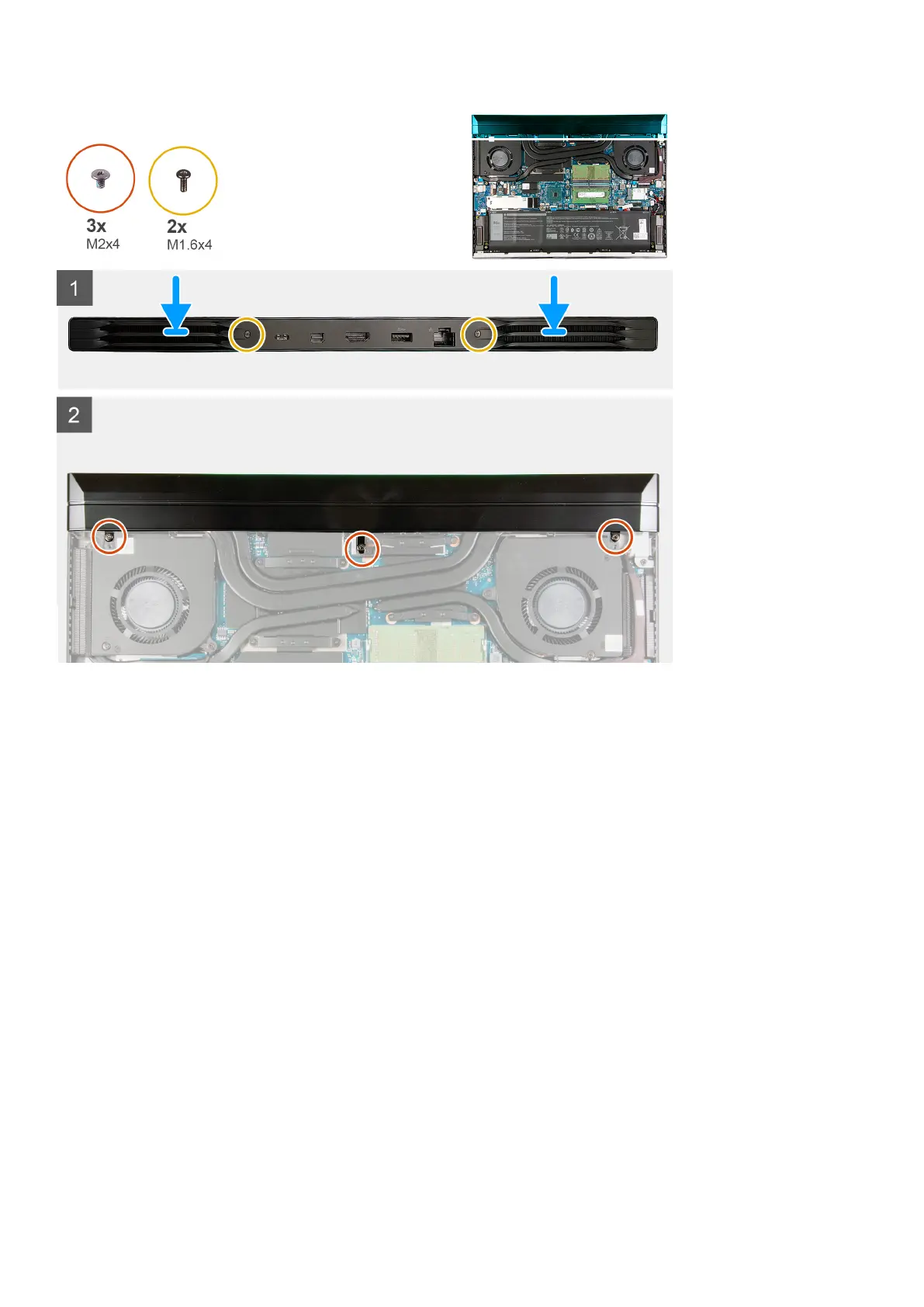

2. Align the screw holes on the rear cover with the screw holes on the palm-rest and keyboard assembly.
3. Replace the three screws (M2x4) that secure the rear cover to the palm-rest and keyboard assembly.
4. Replace two screws (M1.6x4) that secure the rear cover to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Rear-cover bracket
Removing the rear-cover bracket
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the rear cover.
About this task
The following image indicates the location of the rear-cover bracket and provides a visual representation of the removal procedure.
