NOTE: Adhere the tape to secure the solid-state drive thermal bracket to the system board, if applicable.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Removing the M.2 2280 solid-state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
NOTE: Depending on the configuration ordered, your computer may support an M.2 2230 solid-state drive or an M.2
2280 solid-state drive.

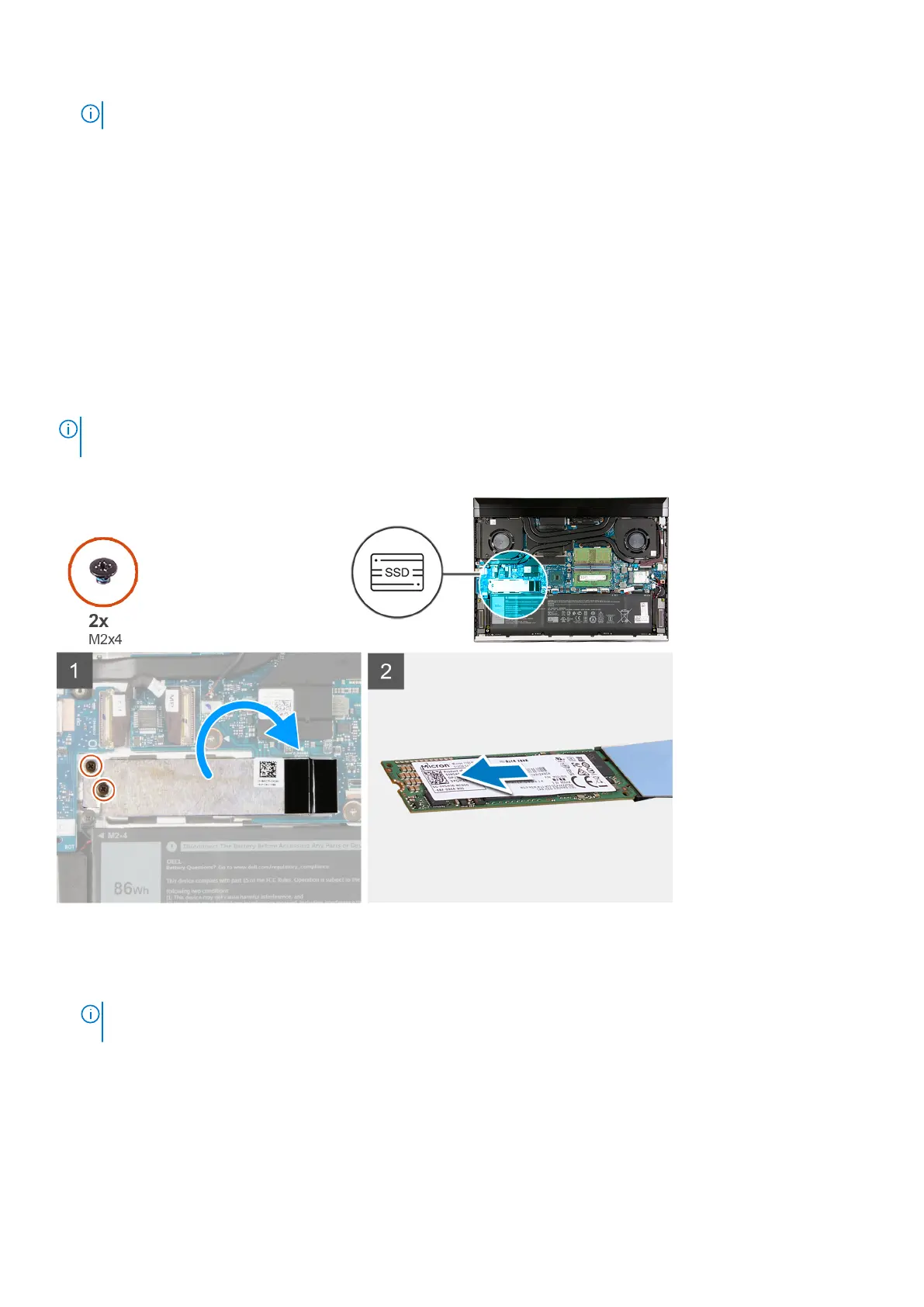

The following image indicates the location of the M.2 2280 solid-state drive and provides a visual representation of the removal procedure.
Steps
1. Remove the two screws (M2x4) that secure the solid-state drive thermal bracket and the solid-state drive to the system board.
2. Flip the solid-state drive thermal bracket to access the solid-state drive.
NOTE:
If you want to replace the system board, do not leave the solid-state thermal bracket on the system board.
Peel the adhesive tape off the system board and lift the solid-state thermal bracket.
3. Slide and lift the solid-state drive off the system board.
Removing and installing components
33
