Installing the G key
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

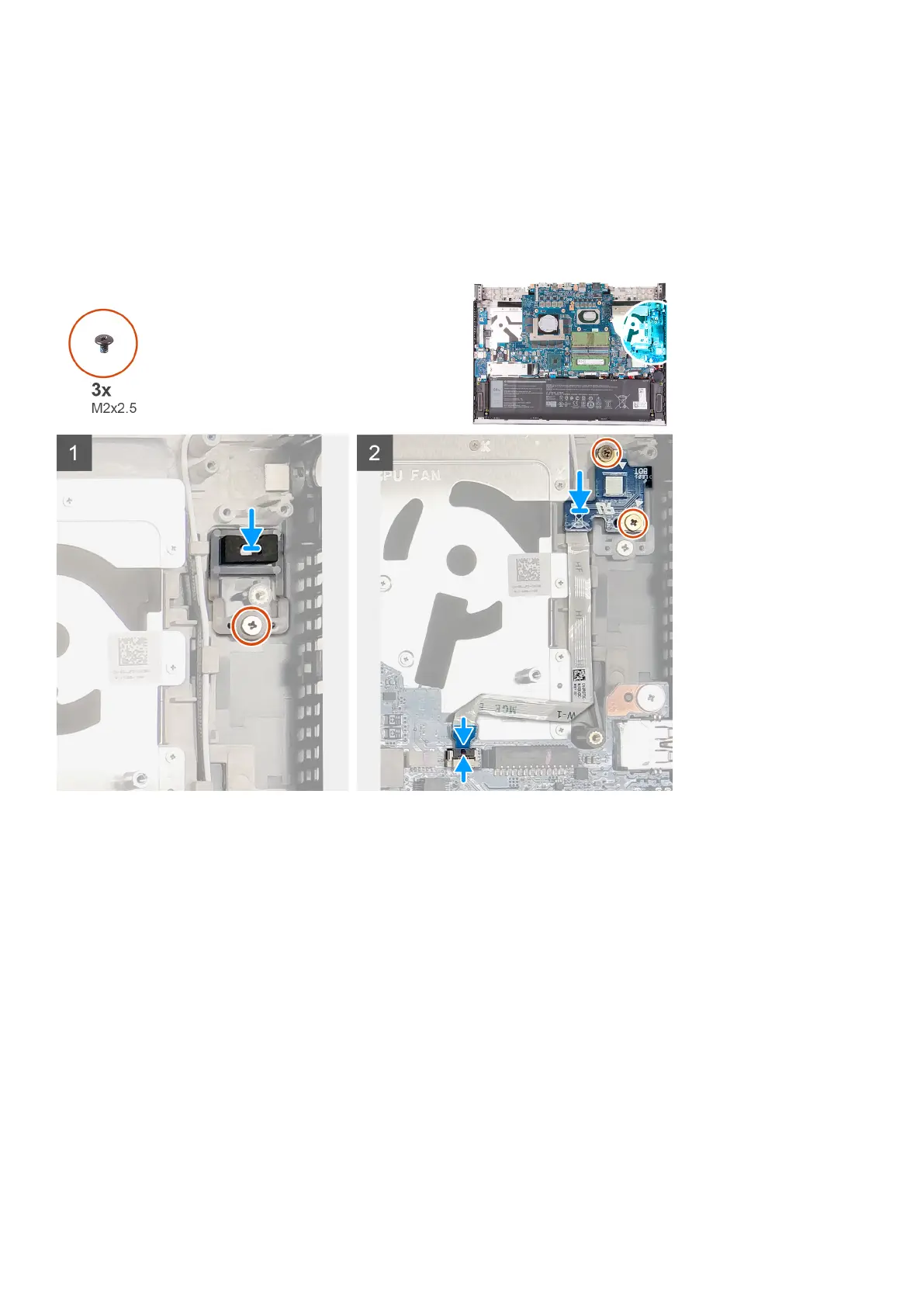

The following image indicates the location of the G key and provides a visual representation of the installation procedure.
Steps
1. Place the G key into the slot on the palm-rest and keyboard assembly.
2. Align the screw holes on the G key with the screw holes on the palm-rest and keyboard assembly.
3. Replace the screw (M2x2.5) that secures the G key to the palm-rest and keyboard assembly.
4. Align the screw hole on the G-key board with the screw hole on the palm-rest and keyboard assembly.
5. Replace the two screws (M2x2.5) that secure the G-key board to the palm-rest and keyboard assembly.
6. Connect the G-key board cable to the system board and close the latch to secure the cable.
Next steps
1. Install the power-adapter port.
2. Install the heat sink.
3. Install the graphics-card fan.
4. Install the processor fan.
5. Install the rear-cover bracket.
6. Install the rear cover.
7. Install the base cover.
8. Follow the procedure in After working inside your computer.
