Steps

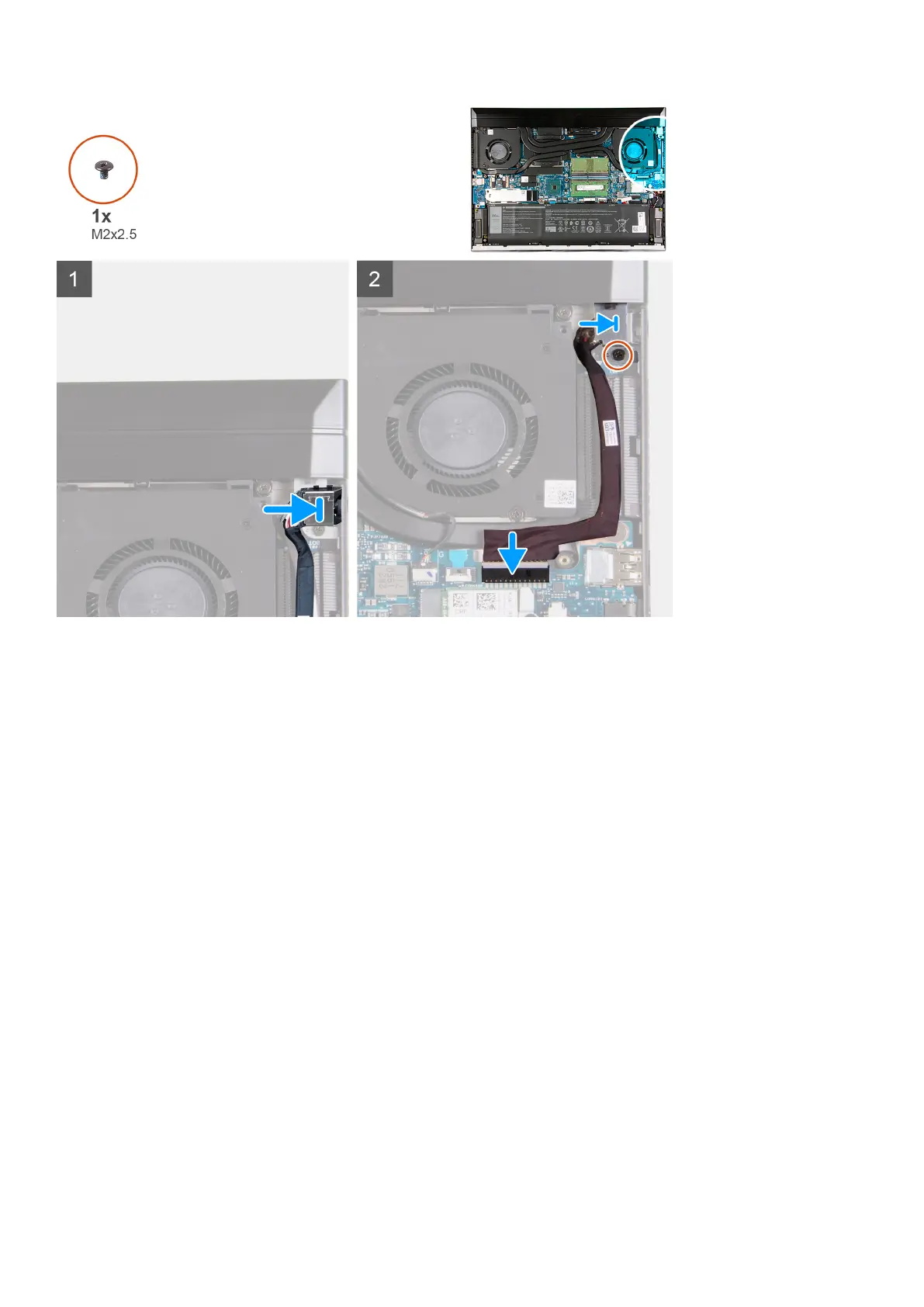

1. Place the power-adapter port into the slot on the palm-rest and keyboard assembly.
2. Route the power-adapter port through the routing guides on the heat sink.
3. Connect the power-adapter port cable to the system board.
4. Align the screw hole on the power-adapter bracket with the screw hole on the palm-rest and keyboard assembly.
5. Replace the screw (M2X2.5) that secures the power-adapter port bracket to the palm-rest and keyboard assembly.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Removing the power-adapter port
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image indicates the location of the power-adapter port and provides a visual representation of the removal procedure.
Removing and installing components
41
