Steps

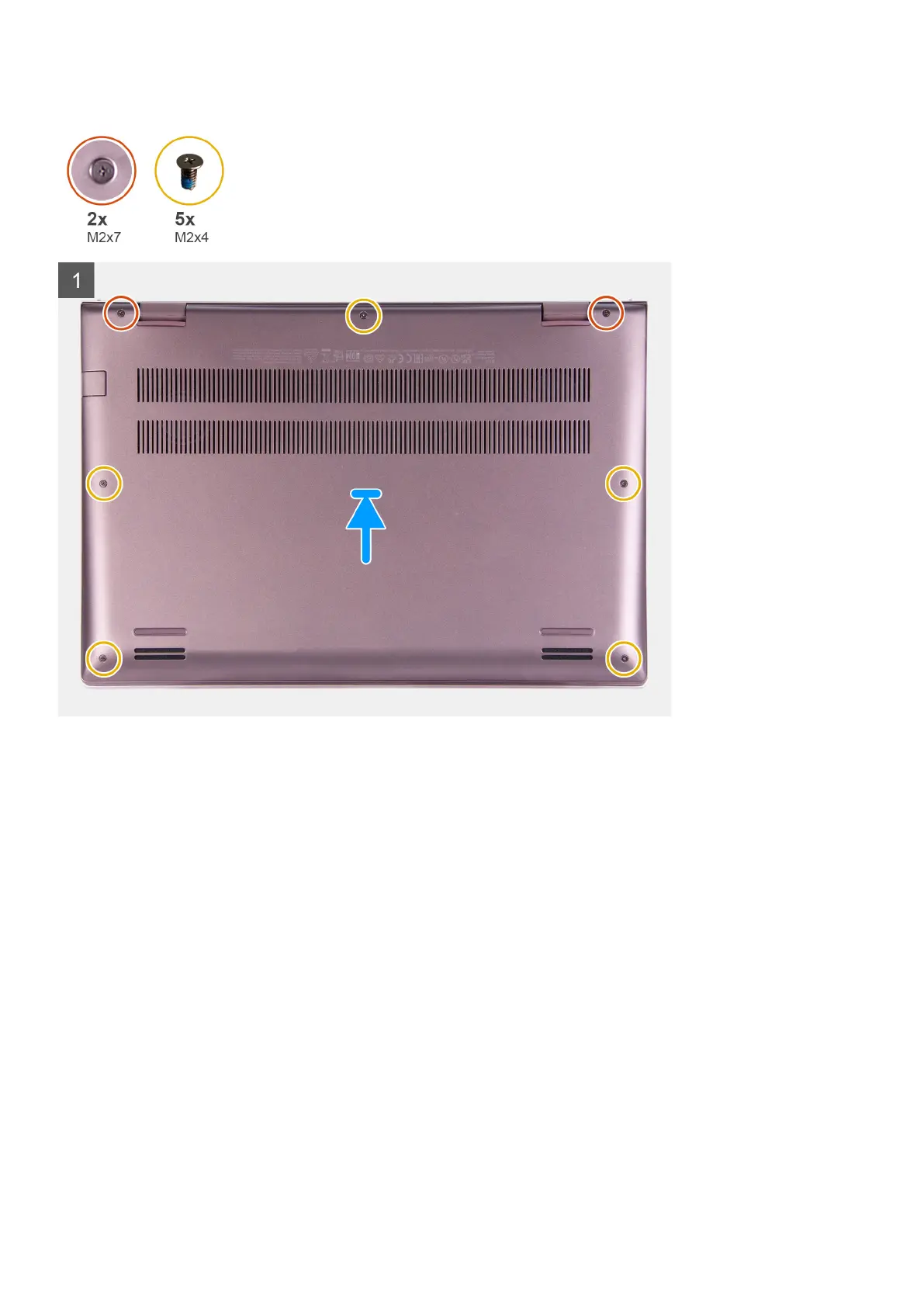

1. Place and snap the base cover into place on the palm-rest assembly.
2. Tighten the two captive screws (M2x7) on the base cover.
3. Replace the five screws (M2x4) that secure the base cover to the palm-rest assembly.
Next steps
1. Exit Service Mode.
2. Follow the procedure in After working inside your computer.
Solid-state drive
Removing the M.2 2230 solid-state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Enter Service Mode.
3. Remove the base cover.
14
Removing and installing components
