System board
Removing the system board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the M.2 2230 solid-state drive or M.2 2280 solid-state drive, whichever applicable.
5. Remove the wireless card.
6. Remove the left fan.
7. Remove the right fan.
8. Remove the heat sink.
NOTE: When removing the system board as a pre-requisitive step you may remove the system board with the heat sink
installed to maintain the thermal bond between the heat sink and the system board.
About this task

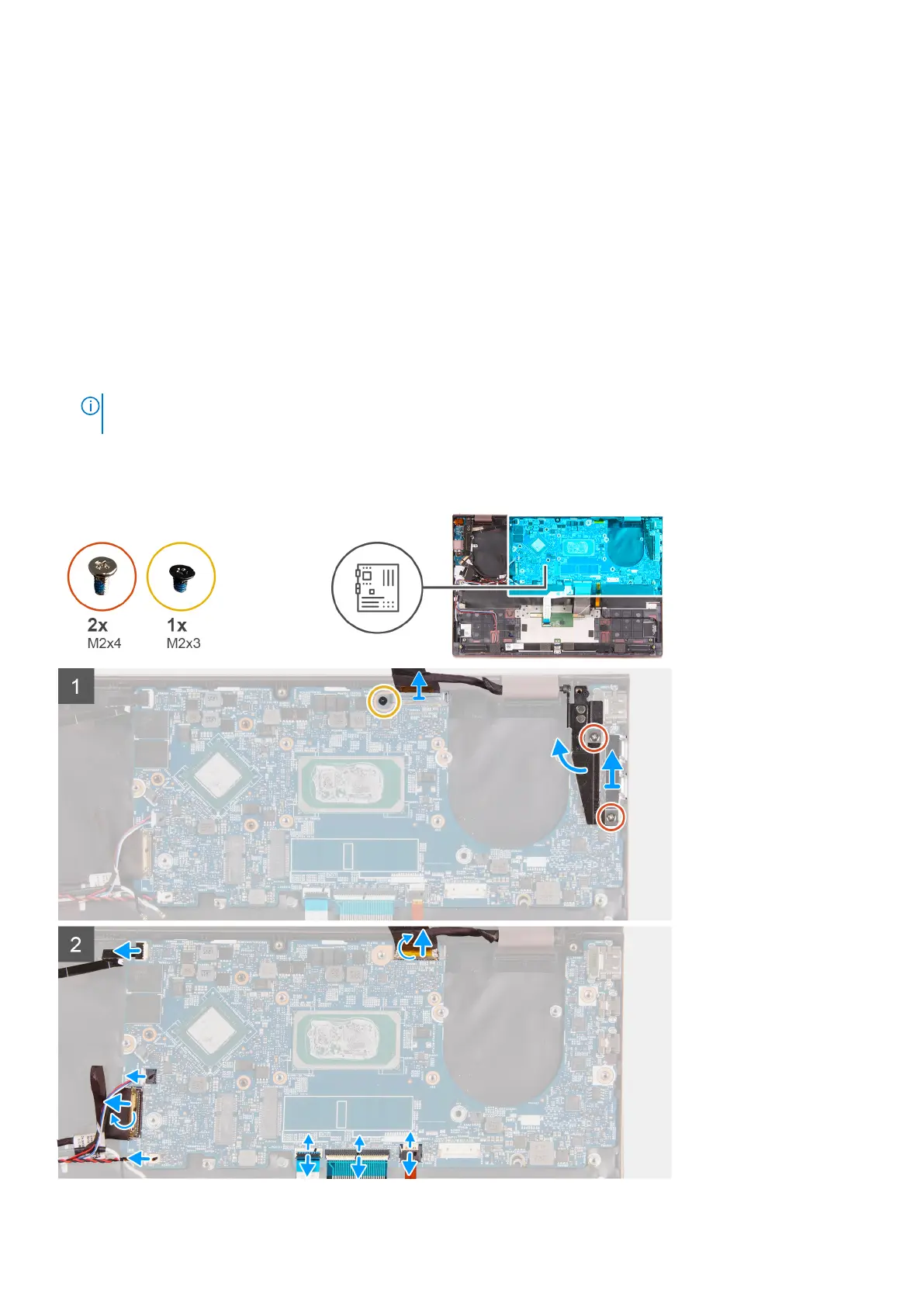

The following image(s) indicate the location of the system board and provides a visual representation of the removal procedure.
46 Removing and installing components
