Power button with optional fingerprint reader
Removing the power-button with optional fingerprint reader
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Enter Service Mode.
3. Remove the base cover.
4. Remove the left fan.
5. Remove the I/O board.
About this task

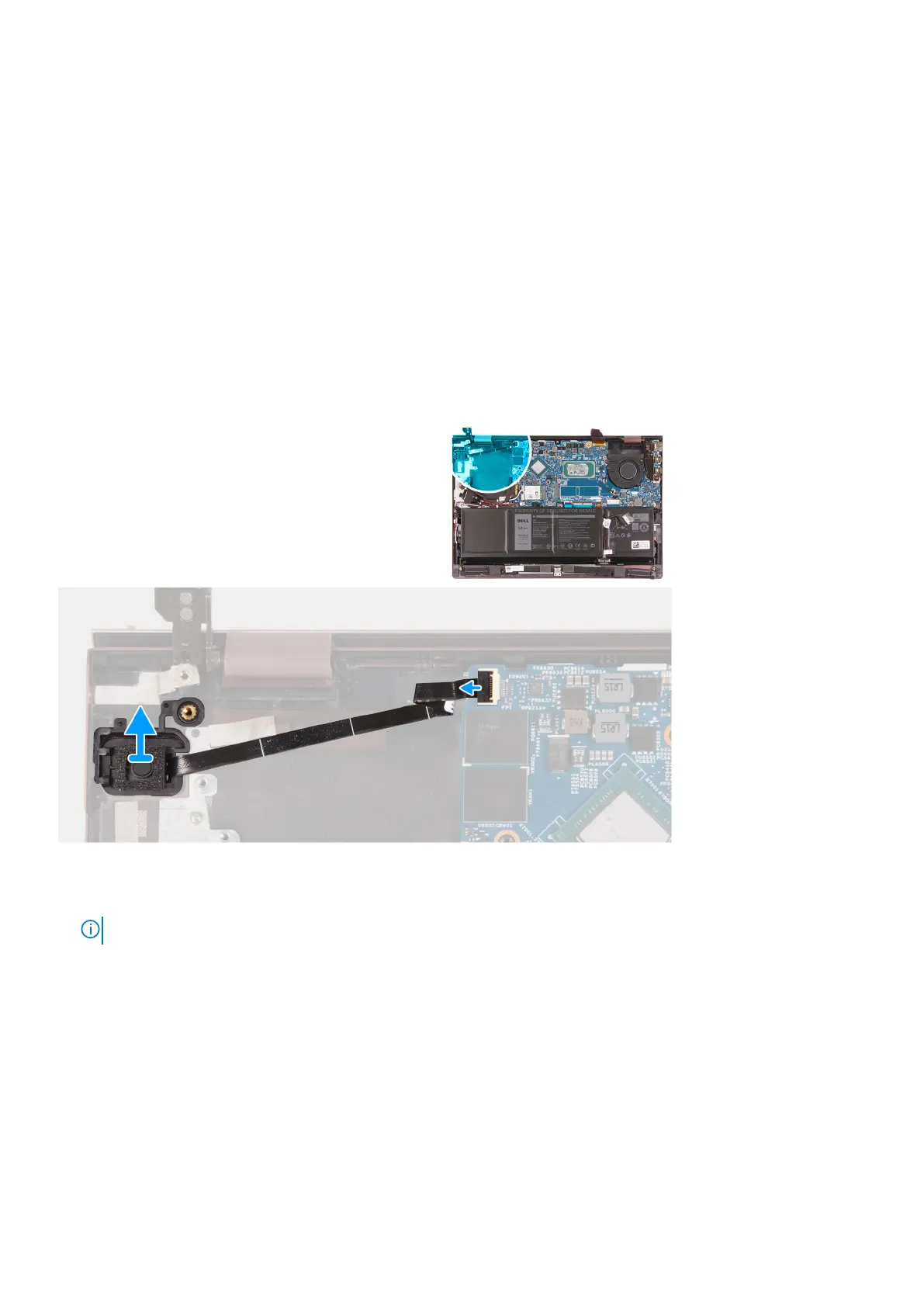

The following image(s) indicate the location of the power-button with optional fingerprint reader and provides a visual
representation of the removal procedure.
Steps
1. Lift the latch and disconnect the power-button and optional fingerprint-reader cable from the system board.
NOTE: This step is only applicable to computers shipped with the optional fingerprint reader.
2. Lift the power-button with optional fingerprint-reader off the palm-rest and keyboard assembly.
Installing the power button
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the power-button with optional fingerprint reader and provides a visual
representation of the installation procedure.
