Dell Inspiron 17 5000 Series - Procedure for Removing the Base Cover

93 pages

To Next Page

To Previous Page

Procedure

1 Remove the screws that secure the base cover to the computer base.

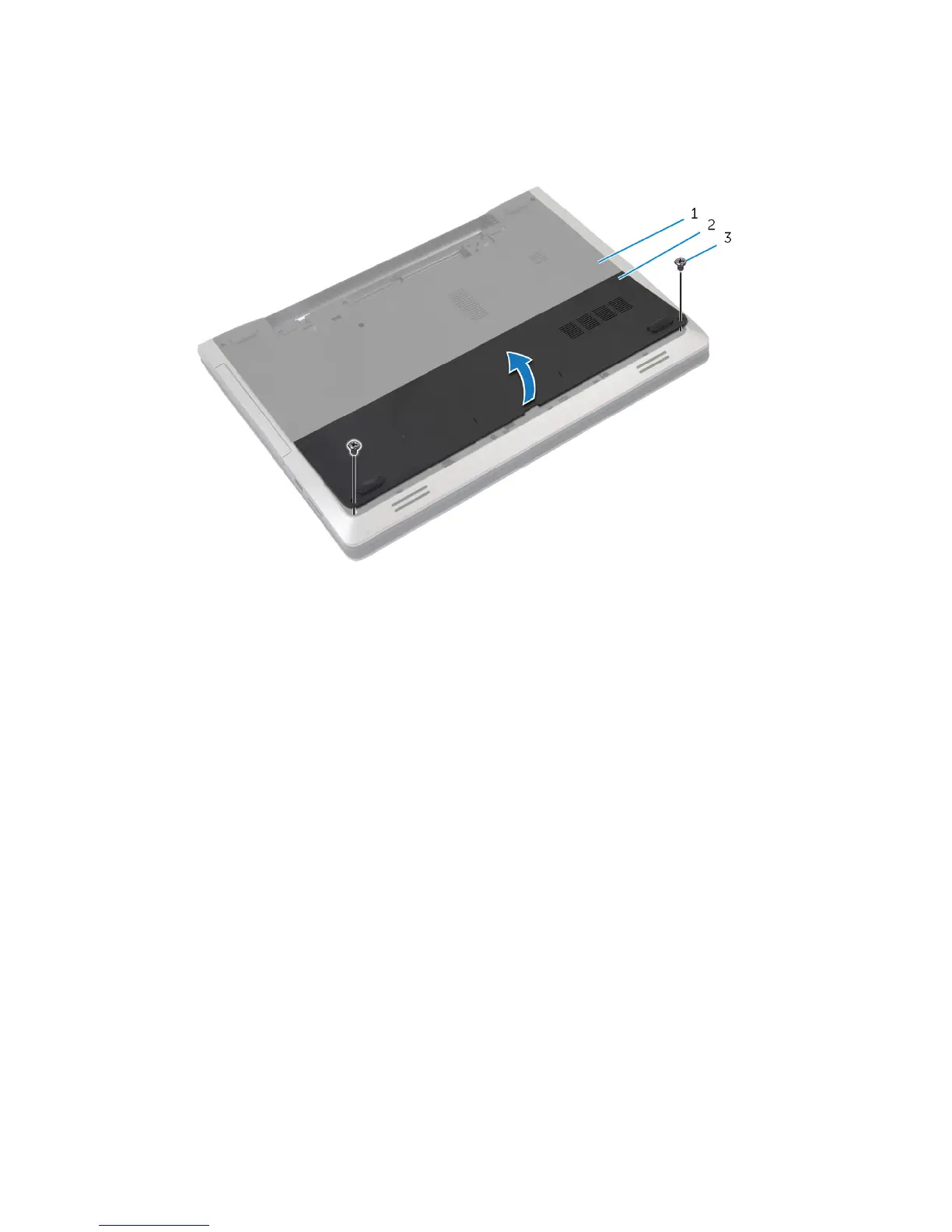

1 computer base 2 base cover

3 screws (2)

2 Using your fingertips, pry the base cover and lift it off the computer base.
