Dell Inspiron 17 5000 Series - Procedure

93 pages

To Next Page

To Previous Page

Procedure

1 Remove the screws that secure the palm rest to the system board.

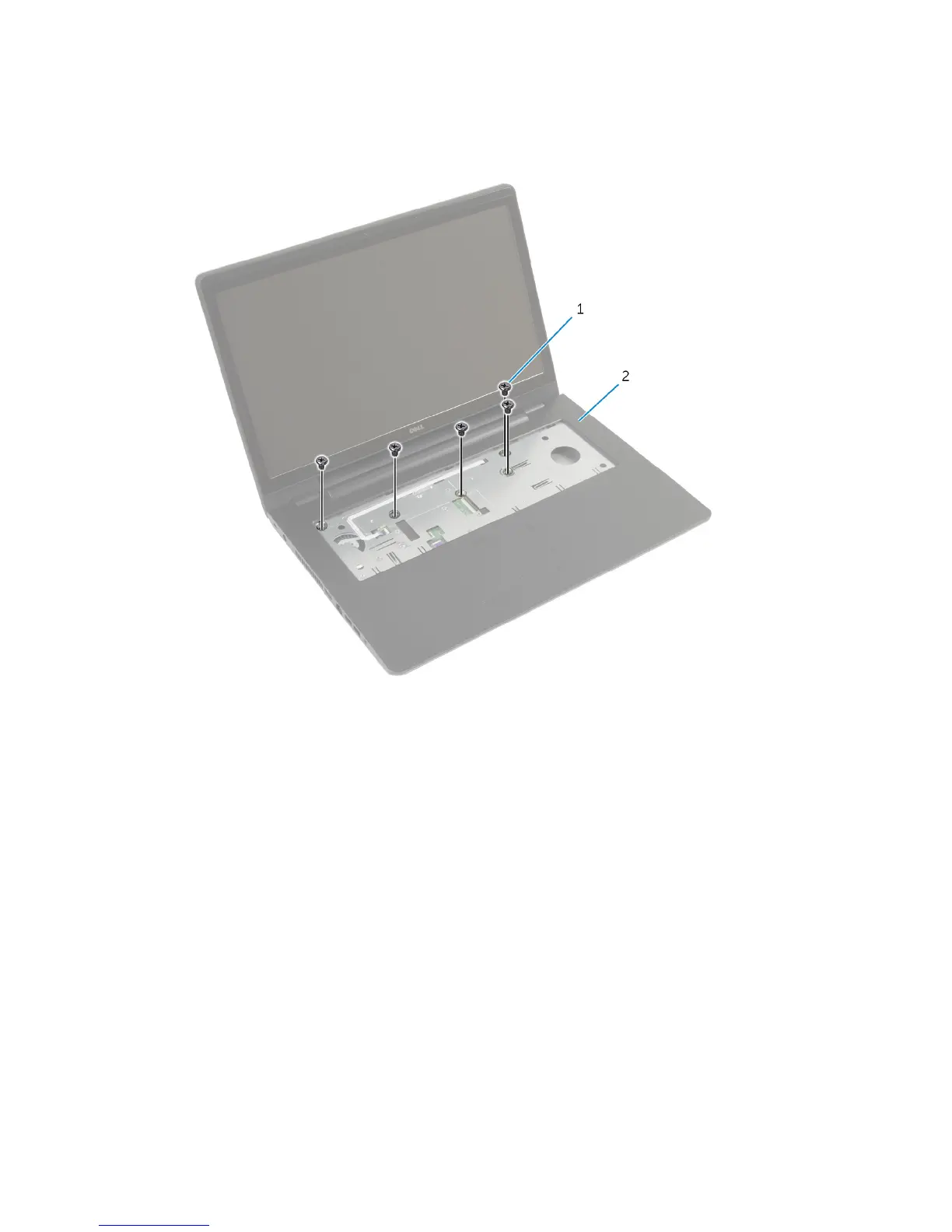

1 screws (5) 2 palm rest

2 Close the display and turn the computer over.
