Dell Inspiron 17 5000 Series - Procedure

93 pages

To Next Page

To Previous Page

Procedure

1 Carefully lift and peel off the camera from the display back-cover.

2 Disconnect the camera cable from the camera.

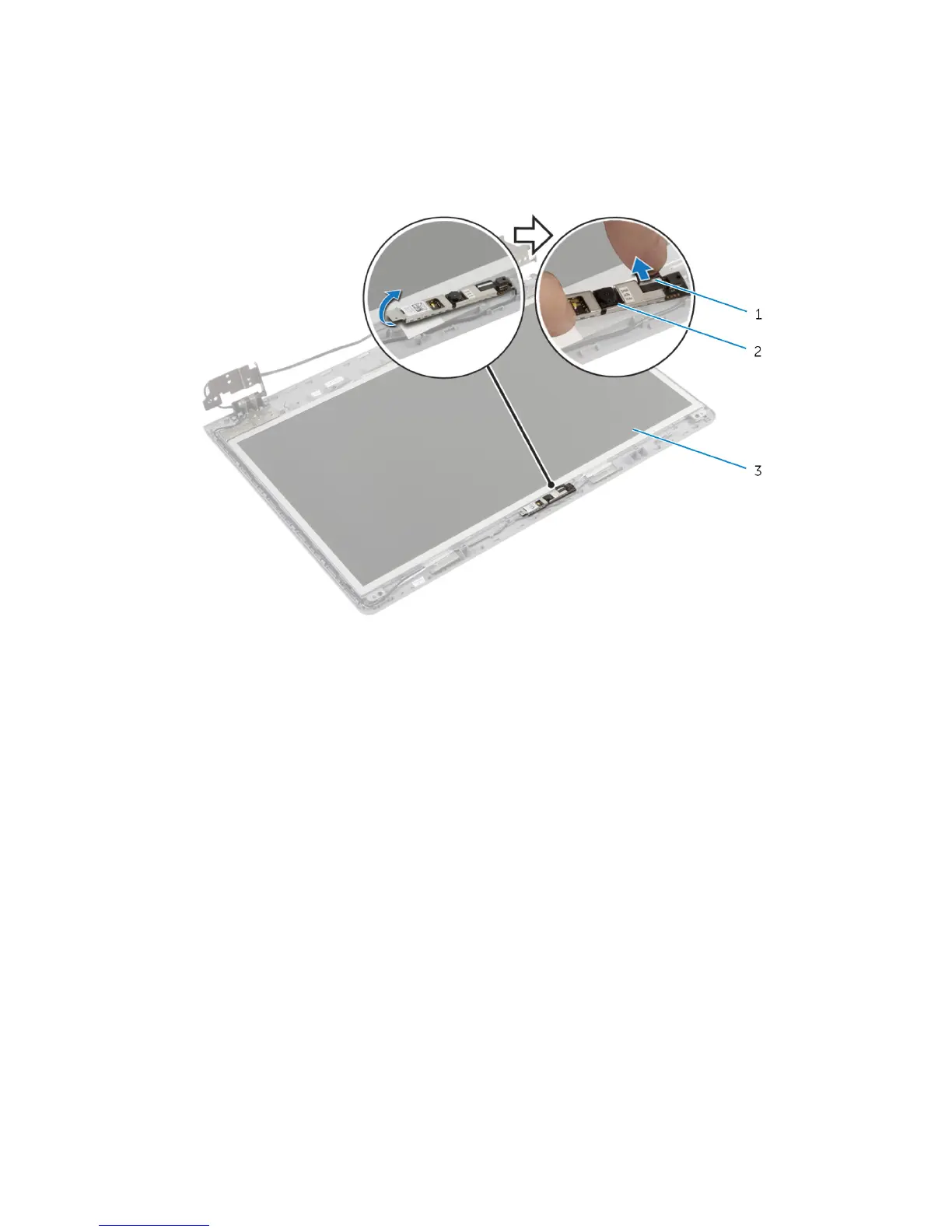

1 camera cable 2 camera

3 display back-cover
