Dell Inspiron 17 5000 Series User Manual

4 Turn the computer over and open the display as far as possible.
5 Peel off the tape that secures the display cable to the system-board
assembly.
6 Lift the connector latches and disconnect the display cable and I/O-
board cable from the system board.
7 Peel off the display cable from the fan.
8 Disconnect the power-adapter port cable and speaker cable from the
system board.

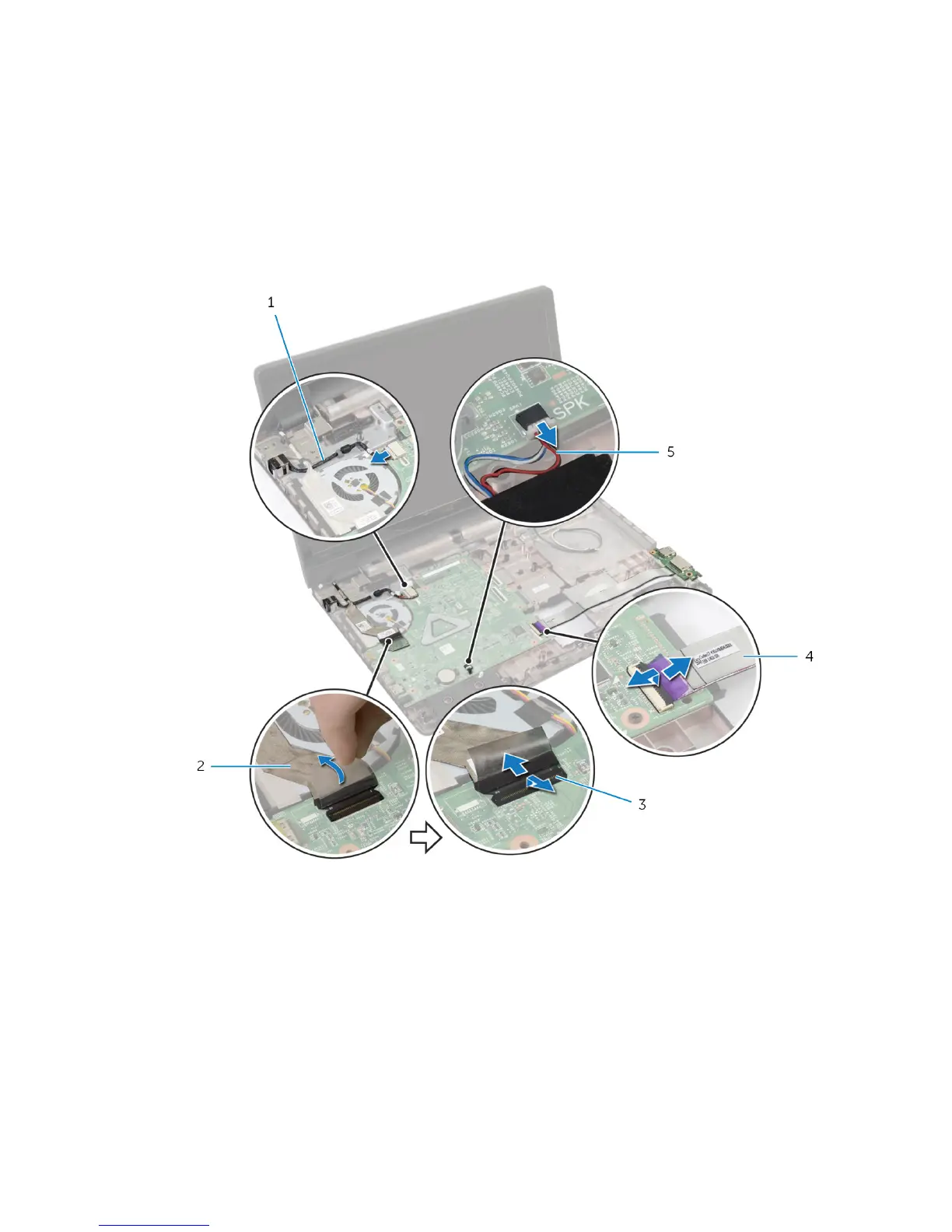

1 power-adapter port cable 2 display cable
3 latches (3) 4 I/O-board cable
5 speaker cable
9 Remove the screws that secure the system-board assembly to the
computer base.
66

Dell Inspiron 17 5000 Series Specifications

General

Display Size	17.3 inches
Storage	1TB HDD
Operating System	Windows 10 / Windows 11
Graphics	Intel UHD Graphics
Display Resolution	1920 x 1080 (Full HD)
Battery	3-Cell Battery, 42 WHr (integrated)
Ports	HDMI, SD card reader, headphone/mic combo
Wireless	Bluetooth
Processor	Intel Core i5/i7
