Dell Latitude 3420 - Installing the Power Adapter Port

About this task

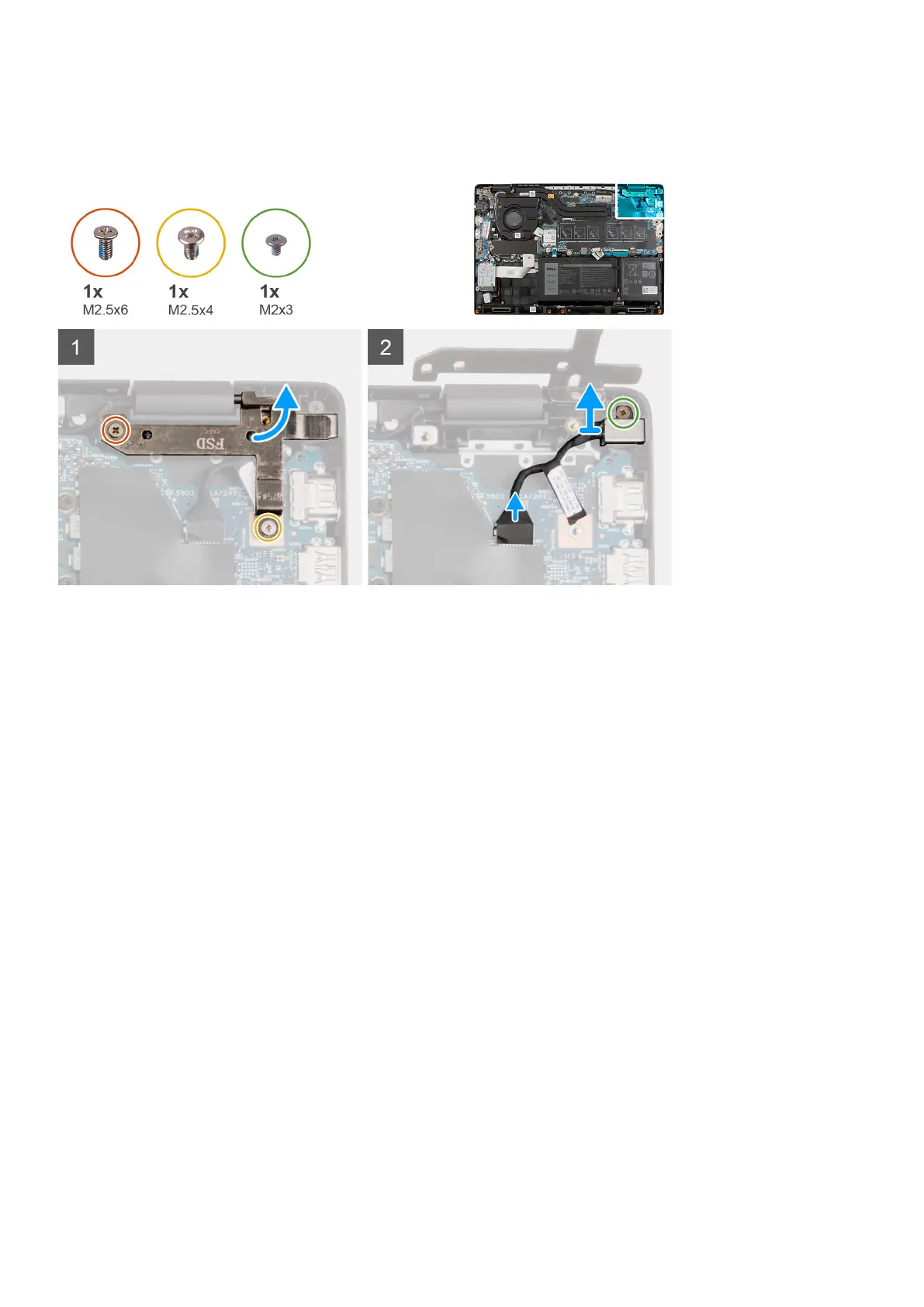

The following image indicates the location of the power adapter port and provides a visual representation of the removal
procedure.
Steps
1. Remove the (M2.5x6) and (M2.5x4) screws that secure the display hinges to the system.
2. Disconnect the power adapter port from the connector on the system board.
3. Remove the (M2x3) screw that secures the power adapter port to the palmrest assembly.
4. Lift and remove the power adapter port from the palmrest assembly.
Installing the power adapter port
About this task
The following image indicates the location of the power adapter port and provides a visual representation of the removal
procedure.
