About this task

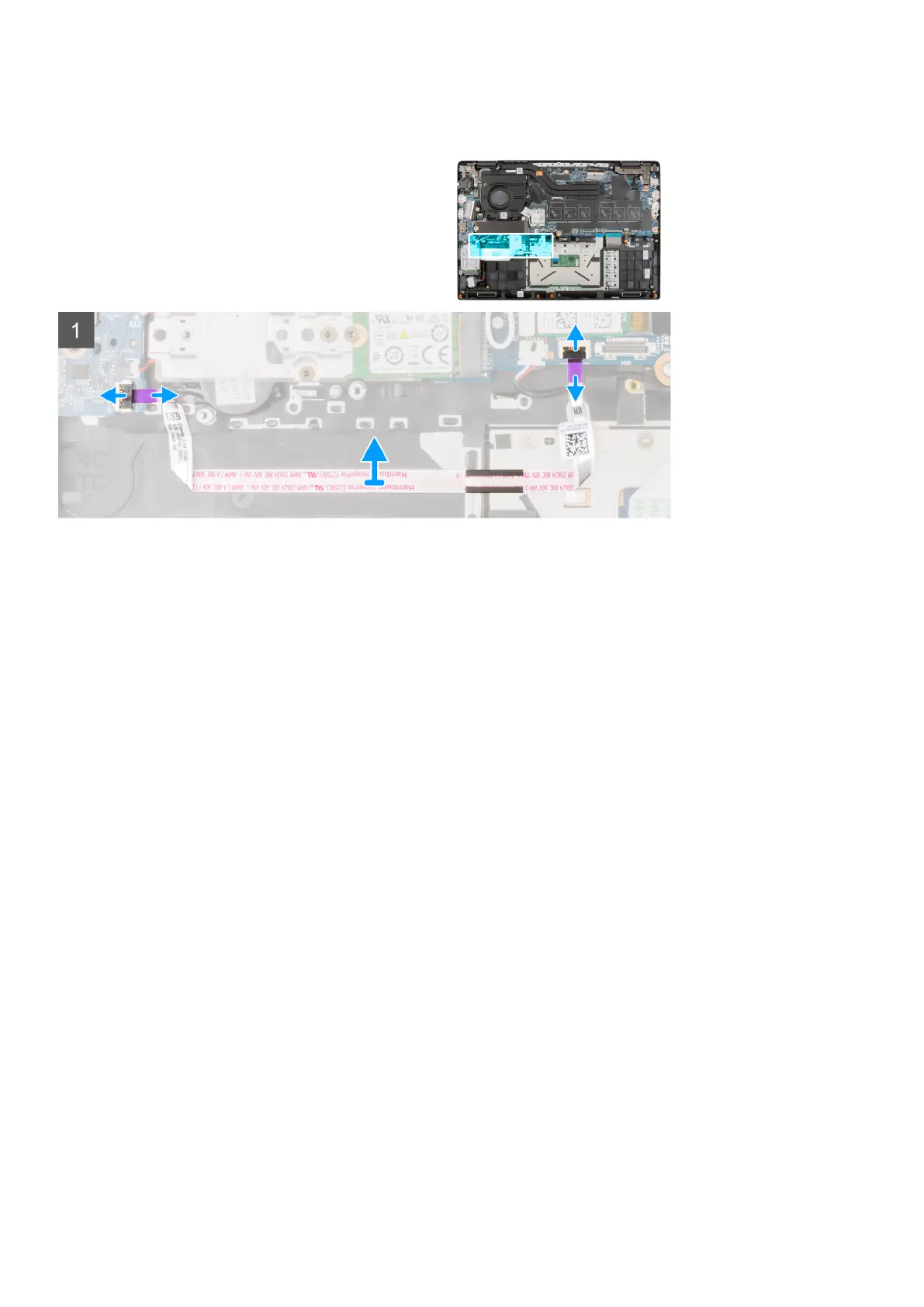

The following image indicates the location of the USB cable and provides a visual representation of the removal procedure.
Steps
1. Open the latch and disconnect the USB cable from the connector on the system board.
2. Carefully peel the USB cable from the palmrest assembly.
3. Open the latch and disconnect the USB cable from the connector on the I/O board.
4. Lift and remove the USB cable from the palmrest assembly.
Installing the USB cable
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the USB cable and provides a visual representation of the installation procedure.
