Steps
Align and place the power button into the slot on the palmrest assembly.
Next steps
1. Install the ethernet port.
2. Install the I/O board.
3. Install the base cover.
4. Exit the service mode
5. Install the SIM card tray for 4G LTE enabled systems.
6. Install the microSD-card.
7. Follow the procedure in after working inside your computer.
Removing the power button with fingerprint reader
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the microSD-card.
3. Remove the SIM card tray for 4G LTE enabled systems.
4. Enter the service mode.
5. Remove the base cover.
6. Remove the I/O board.
7. Remove the ethernet port.
About this task

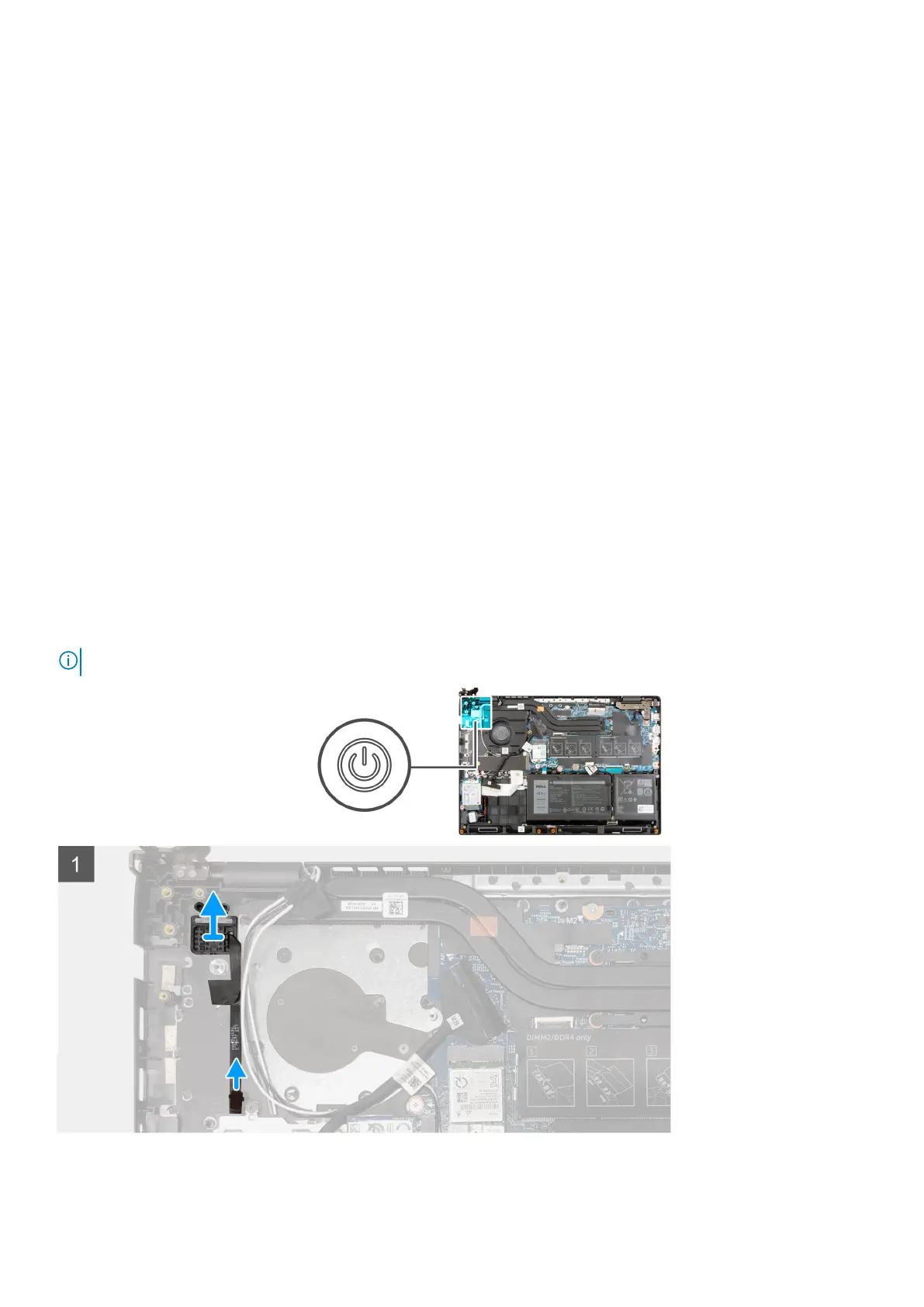

The following image indicates the location of the power button with fingerprint reader and provides a visual representation of
the removal procedure.
NOTE:
Removing and installing components 75
