Removing and installing components
Recommended tools
The procedures in this document require the following tools:
• Phillips #0 screwdriver
• Phillips #1 screwdriver
• Plastic scribe-Recommended for field technician.
Screw List

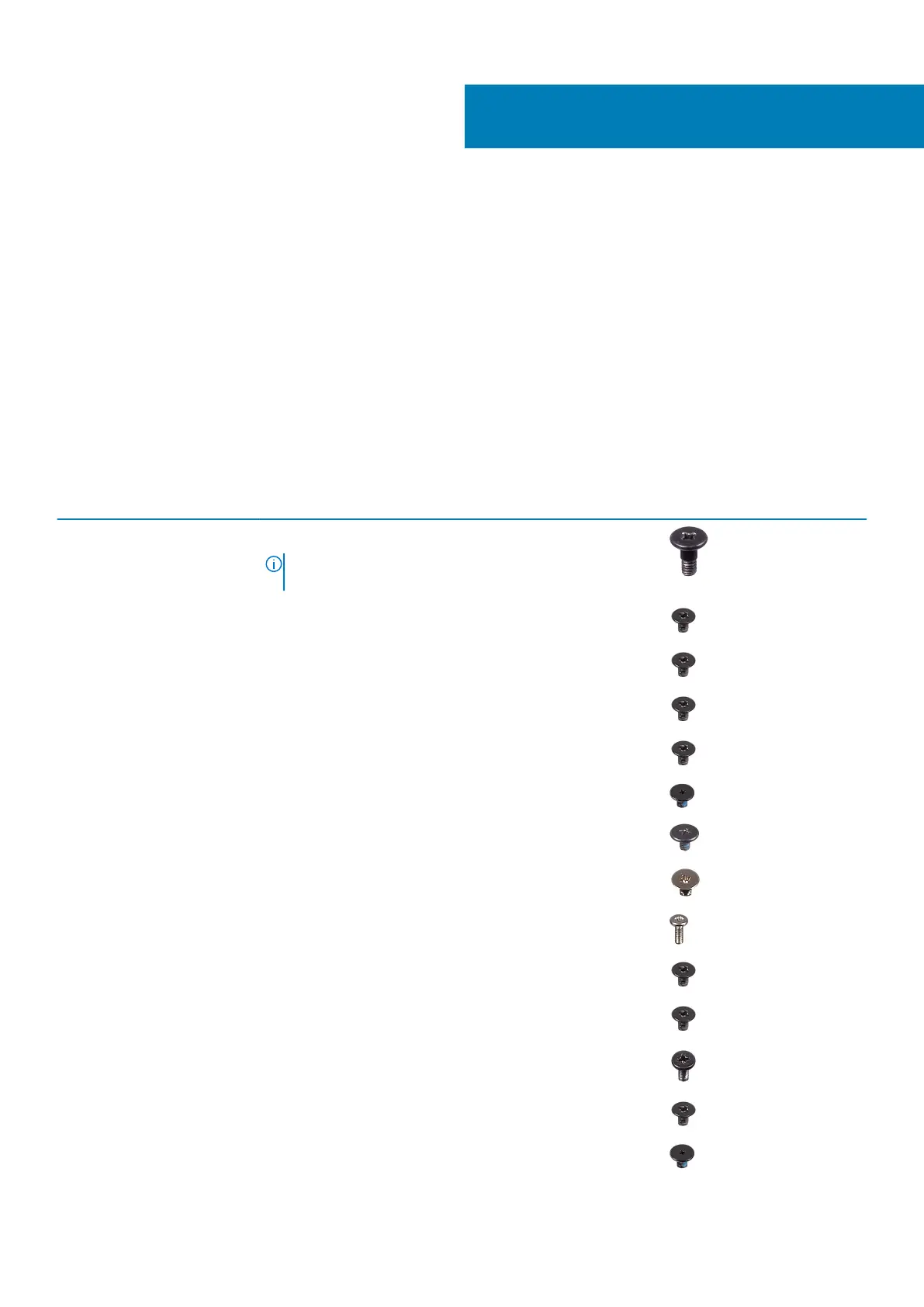

The following table shows the screw list and the images for Dell Latitude 9410, for different components and locations.
Table 7. Screw Size List
Component Screw type Quantity Image
Base cover Captive screws
NOTE: Screws are part of
the base cover
10
Solid State Drive M2x2 1
WLAN card M2x2 1
WWAN card M2x2 1
Fan M2x2 1
Speakers M1.6x1.4 3
Heatsink M1.6x2.5 4
Display assembly M2.5x3.5 6
Battery
M1.6x4.5 1
M2x3 4
System board
M2x2 2
M2x4 2
M2x3 5
Keyboard M1.6x1.5
1
2
4
14 Removing and installing components
