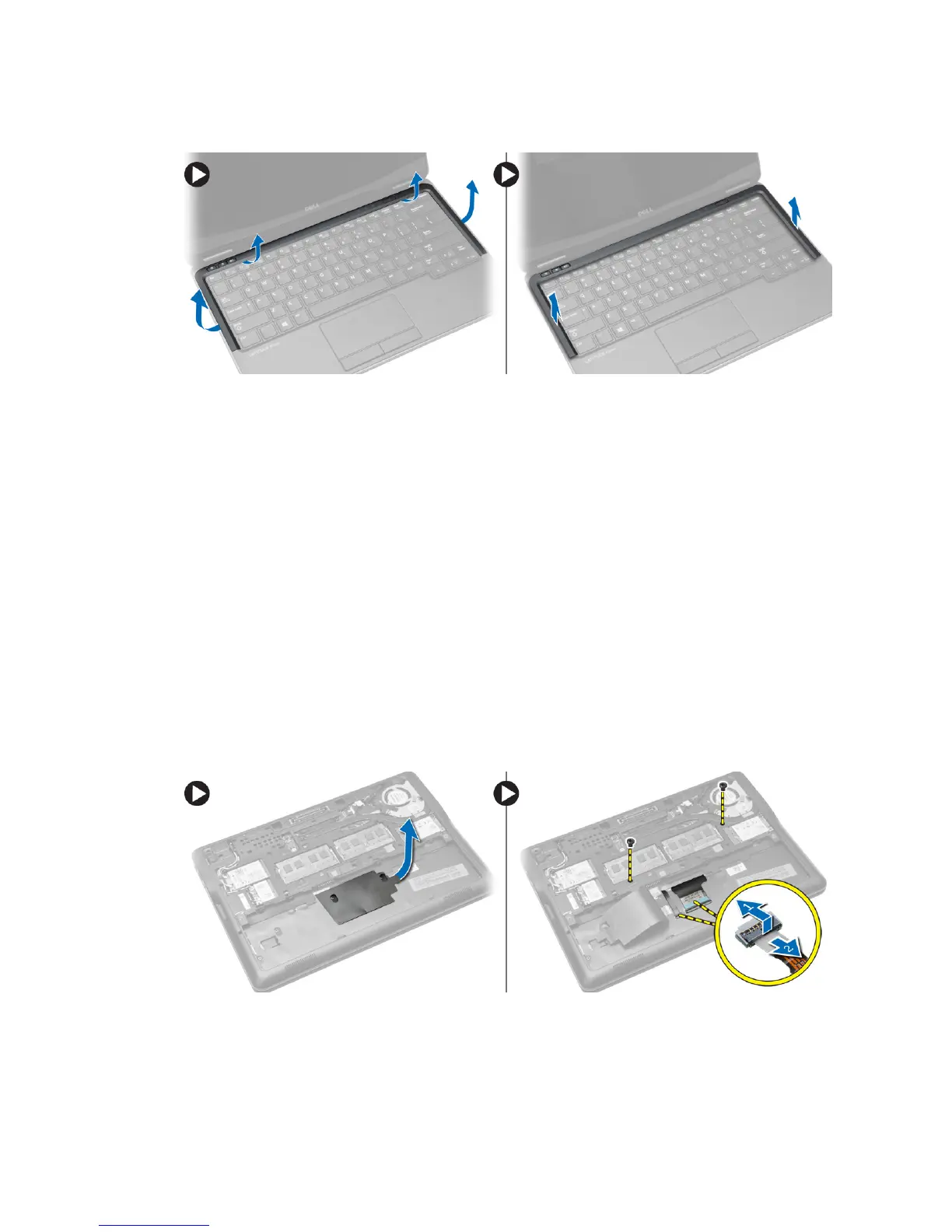

3. Using a plastic scribe, pry the keyboard trim to release it from the computer. Lift up to remove the keyboard trim
from the computer.
Installing the Keyboard Trim
1. Align the keyboard trim to its slot.
2. Press along the sides of the keyboard trim until it clicks in place.
3. Install battery.
4. Follow the procedures in
After Working Inside Your Computer.
Removing the Keyboard
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove:
a. battery
b. base cover
c. keyboard trim
3. Lift the battery bay and remove the screw that secures the keyboard to the computer.
4. Perform the following steps as shown in the illustration:
a. Lift the latch that secure the keyboard cable to the computer [1].
b. Disconnect the keyboard cable the computer [2].
5. Flip the computer and remove the screws that secure the keyboard to the computer.
17
