Dell Latitude E7240 - Installing the Display-Hinge Cover; Removing the Heatsink; Installing the Heatsink

Installing the Display-Hinge Cover
1. Place the display-hinge cover and tighten the screws to secure the display-hinge cover to the computer.
2. Install battery.
3. Follow the procedures in After Working Inside Your Computer .
Removing the Heatsink
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a. SD card
b. battery
c. base cover
d. mSATA
e. keyboard trim
f. keyboard
g. palmrest
h. display-hinge cover
i. display assembly
3. Remove the screws that secure the heatsink to the computer.

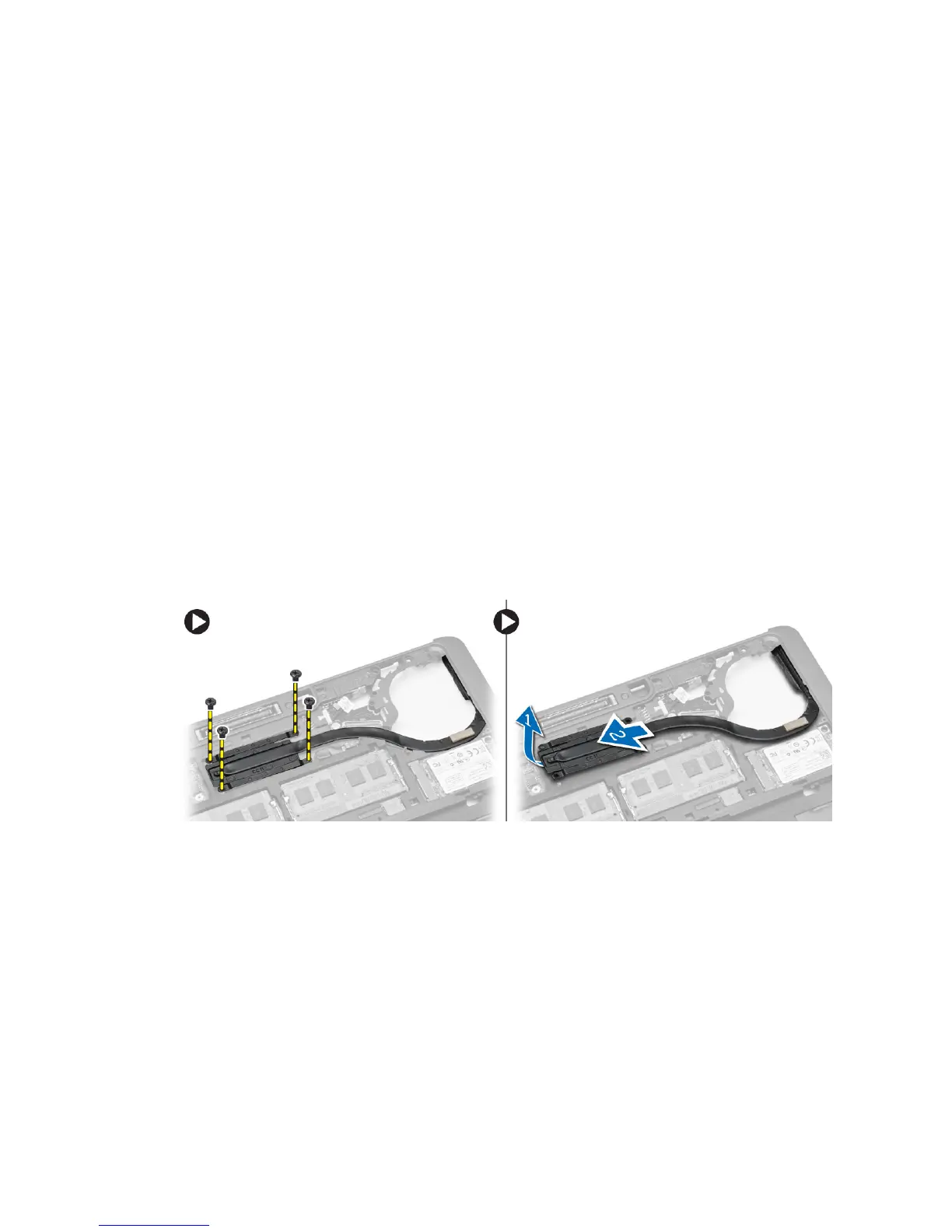

4. Perform the following steps as shown in the illustration:
a. Lift the heatsink from the computer [1].
b. Remove the heatsink from the computer [2].
Installing the Heatsink
1. Place the heatsink into its original position on the computer.
2. Tighten the screws to secure the heatsink to the computer.
