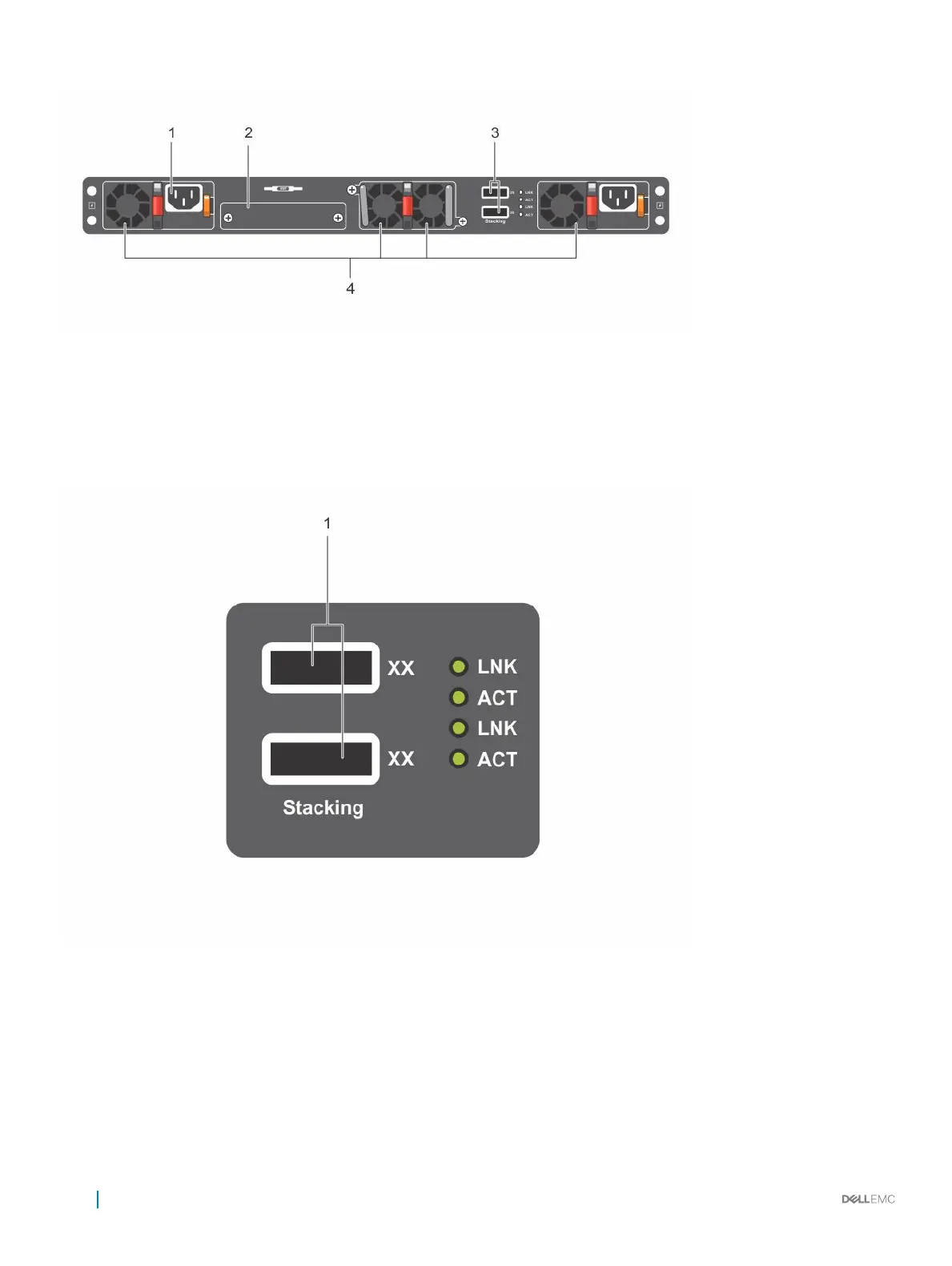

Figure 15. N30xx PSU-Side
1 AC Power Receptacle
2 Dual 10G Slots for SFP+, 10GBASE-T, or Stacking/10GbE Modules
3 Mini-SAS stacking ports
4 Fan Vents
Figure 16. N3048 Mini-SAS Stacking Ports Close-up
1 Mini-SAS stacking ports
The term mini-SAS refers to the stacking port cable connections. For information about using the mini-SAS ports to connect switches, see
the Stacking Multiple N30xx Switches section.
26
N30xx Series Overview
