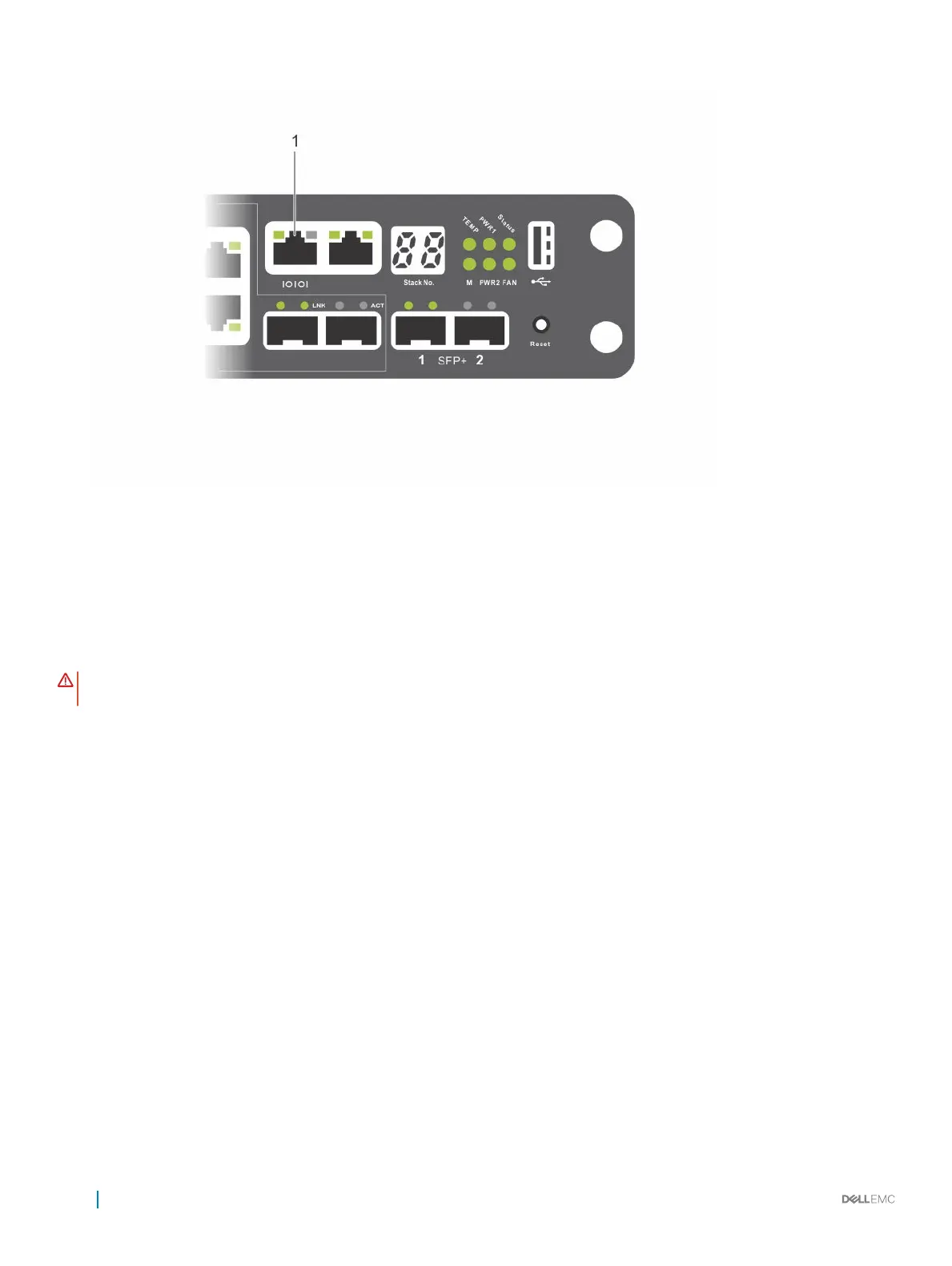

Figure 24. N3048 Console Port Location
1 Console port
The RJ-45 port to the right of the console port is the out-of-band management interface.
Connecting N30xx Switch to Power Source
WARNING
: Read the safety information in the
Safety and Regulatory Information
manual and the safety information for other
switches that connect to or support the switch.
The N30xx switches have two FRU power supplies for redundant or load sharing operation.
AC and DC Power Connection
1 Connect the switch console port to a VT100 terminal or VT100 terminal emulator using the RJ-45 to DB-9 female cable.
2 Using a 5-foot (1.5–meter) standard power cable with safety ground connected, connect the power cable to the AC main receptacle
on the PSU-side.
3 Connect the power cable to a grounded AC outlet.
40
Starting and Configuring the N30xx System
