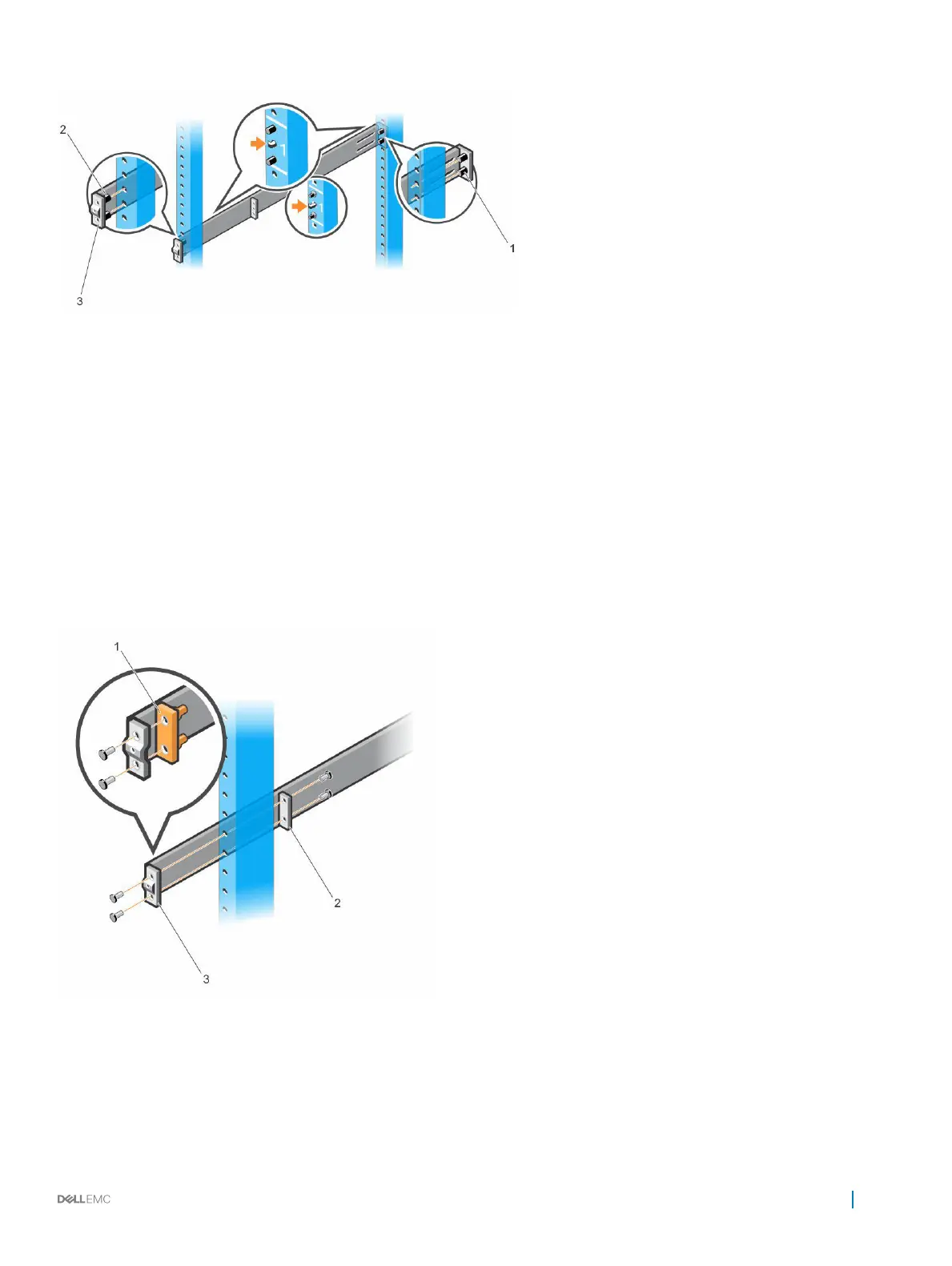

Figure 17. 1U Tool-less Configuration
2-Post Flush-Mount Configuration
To install the Dell ReadyRails system using the two-post flush-mount configuration, follow these steps.
1 For this configuration, remove the castings from the front side of each ReadyRails assembly. See item 1 in Figure 18. Use a Torx driver
to remove the two screws from each front flange ear (on the switch side of the rail) and remove each casting. Retain the castings for
future rack requirements. You need not remove the rear flange castings.
2 Attach one rail to the front post flange with two user-supplied screws. See item 2.
3 Slide the plunger bracket forward against the vertical post and secure the plunger bracket to the post flange with two user-supplied
screws. See item 3.
4 Repeat this procedure for the second rail.
Figure 18. 2-Post Flush-Mount Configuration
N30xx Series Installation
31
