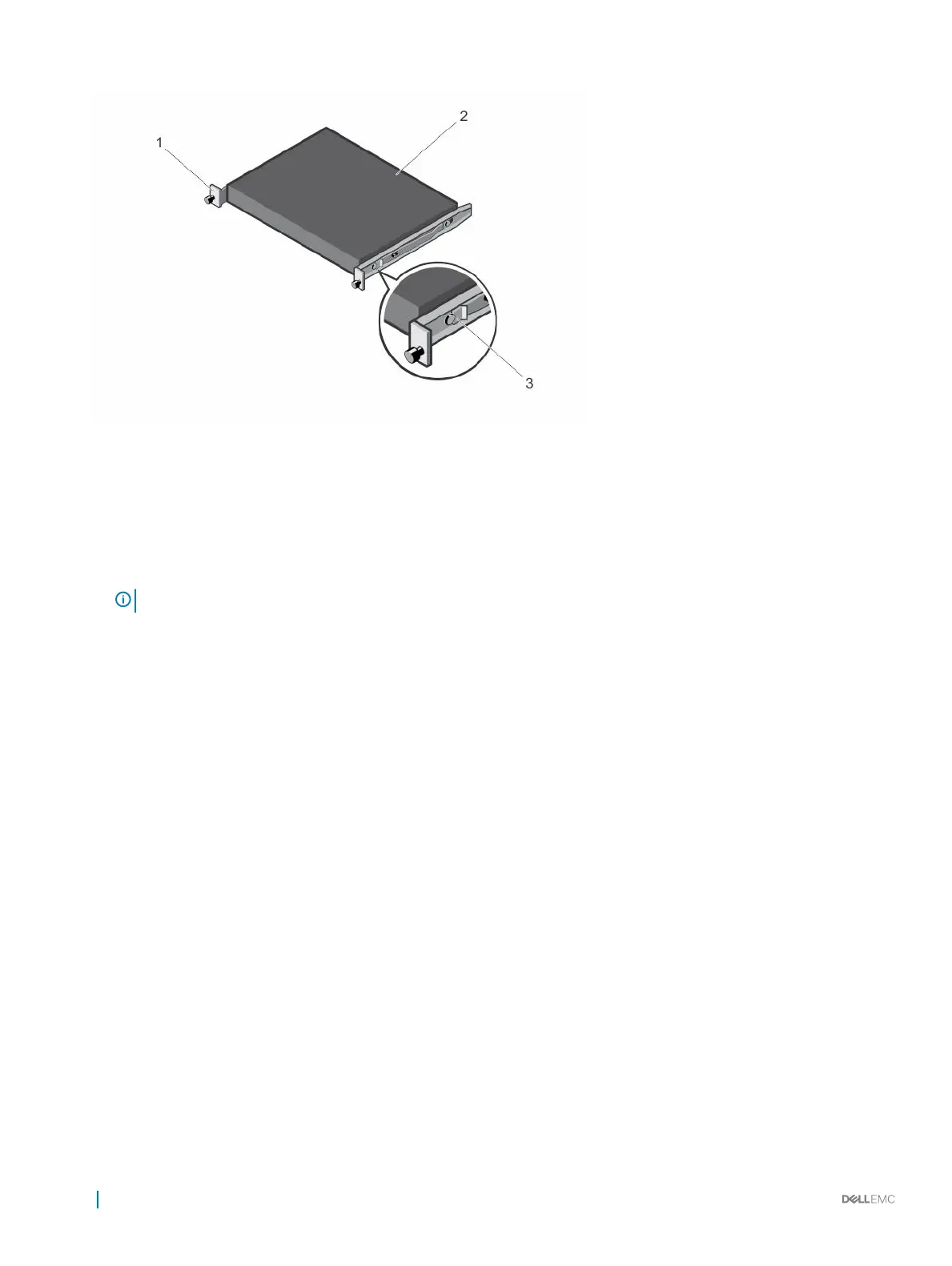

Figure 21. Attaching the Switch Rails
1 Front standoff locking tab 2 Switch
3 Locking tab
2 After you have installed both switch rails, line them up on the previously mounted ReadyRails and slide the switch in until it is flush
with front of rack. About 3 inches before you fully insert your system, the rail locking feature engages to keep the switch from
inadvertently sliding out of the rack and falling.
NOTE
: Do not the use the mounted ReadyRails as a shelf or a workplace.
34 N30xx Series Installation
