Dell Networking N20 Series Installation Guide

1 Console Port
2 USB Port
3 SFP+ Ports
4 48 10/100/1000BASE-T Ports

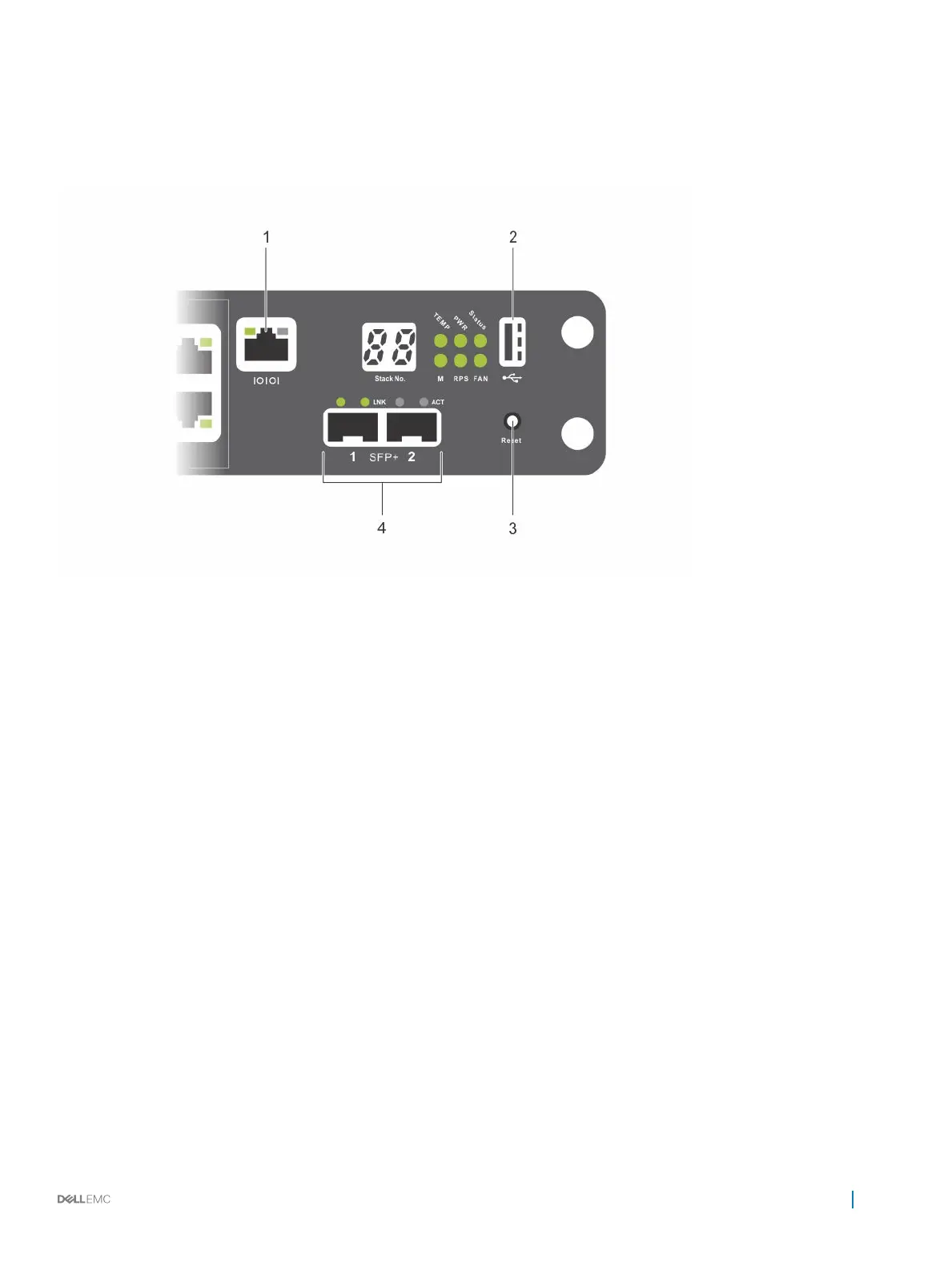

Figure 2. N2024 Close-up
1 Console Port
2 USB Port
3 Reset Button
4 SFP+ Ports
The N20xx I/O-side has status light emitting diodes (LEDs) for overtemperature alarm, internal power, and status on the top row. The
bottom row of the status LEDs display the stack master, redundant power supply (RPS) status, and fan alarm status.
N20xx Series Overview
5

Dell Networking N20 Series Specifications

General

Brand	Dell
Model	Networking N20 Series
Category	Switch
Language	English
