N20xx Series PSU-Side

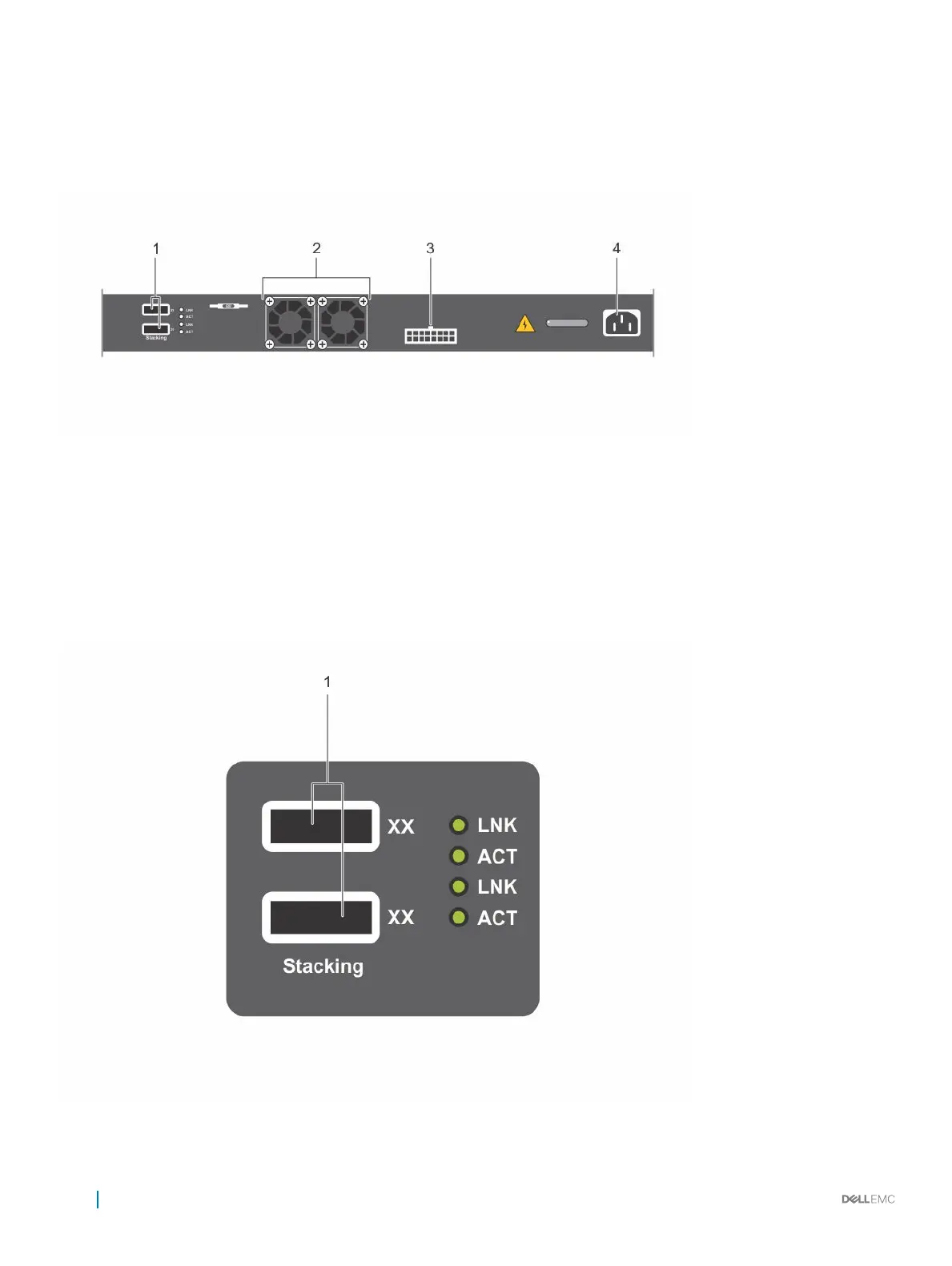

The following image shows the PSU-side of the N20xx switches.
Figure 4. N20xx PSU-Side
1 Mini-SAS stacking ports
2 Fan Vents
3 To DC Power Source (Optional)
4 AC Power Receptacle
The term mini-SAS refers to the stacking port cable connections. For information about using the mini-SAS ports to connect switches, see
the Stacking Multiple N20xx Switches section.
Figure 5. N2048 Mini-SAS Stacking Ports Close-up
