WARNING: Electrostatic discharge (ESD) damage can occur if components are mishandled. Always wear an ESD-
preventive wrist or heel ground strap when handling the S5000 and its components.
NOTE: The part name and port number of a Fibre Channel module are inscribed on the handle as shown below.

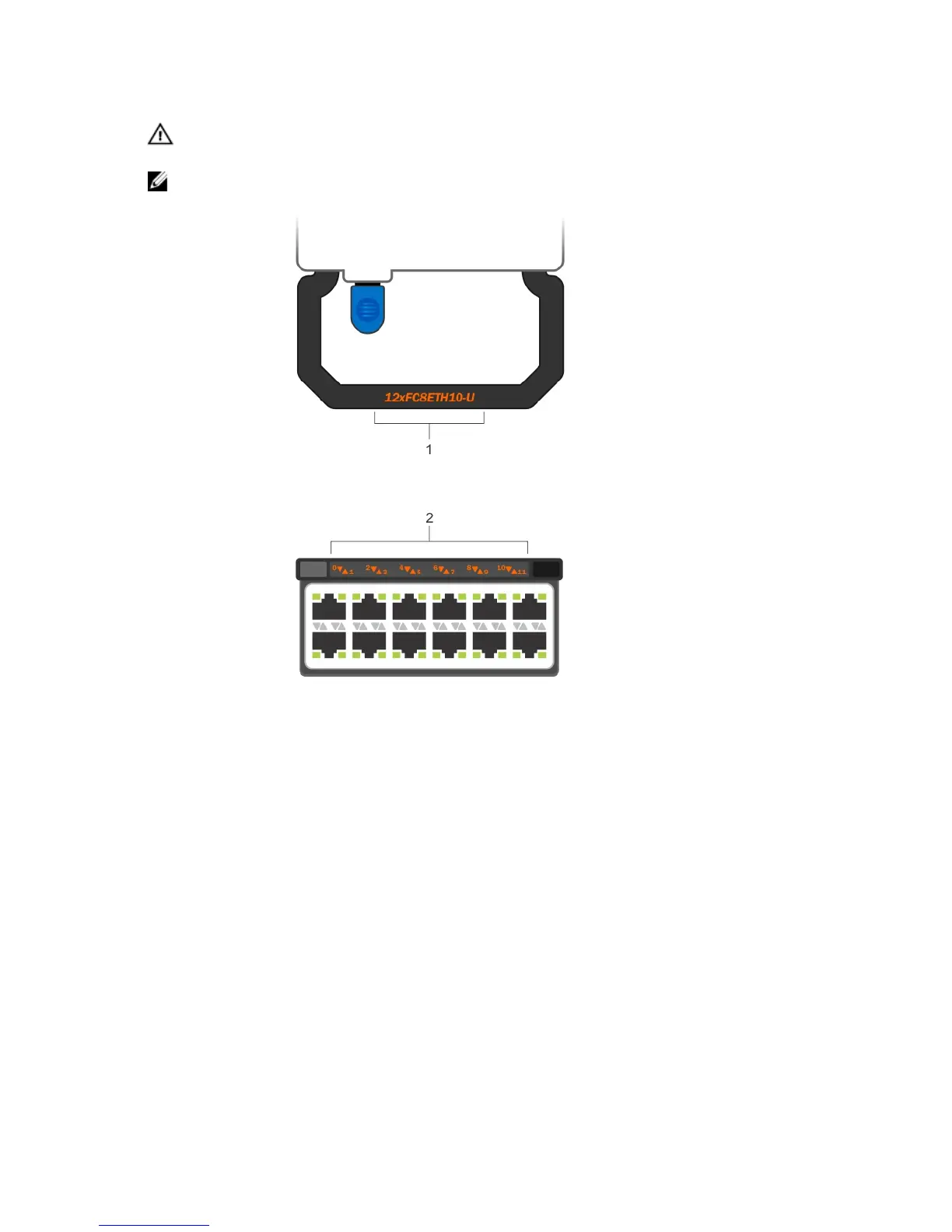

Figure 13. Part name and Port number on the Fibre Channel Module Handle
1. Part Name
2. Port Number
Installing a Fibre Channel Module
1. Use the grab handle on the Fibre Channel module to slide it into the switch module slot.
2. Connect any network interface cables to the attached module.
