Installing the front bezel
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

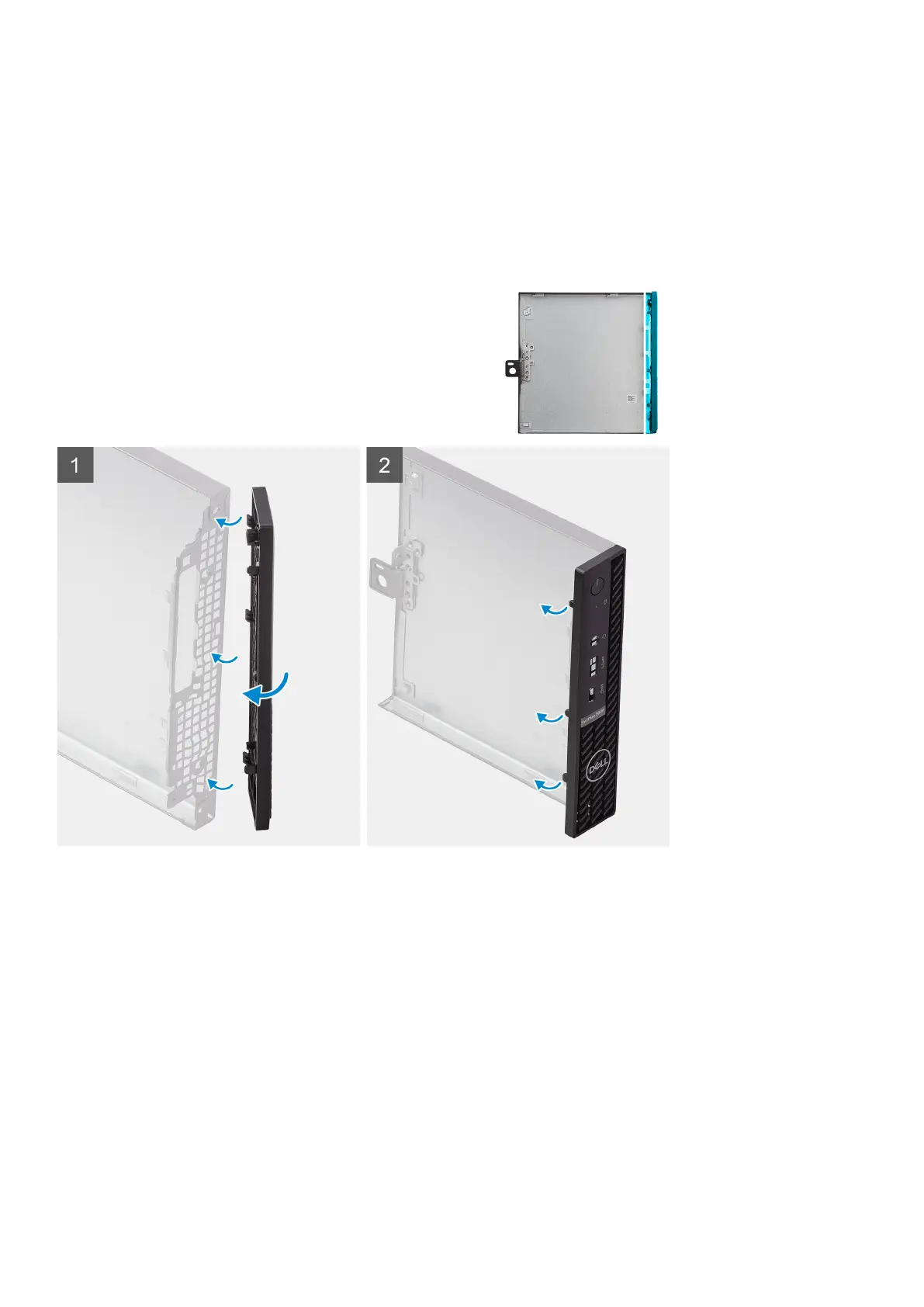

The following image indicates the location of the front bezel and provides a visual representation of the installation procedure.
Steps
1. Position the bezel to align the tabs with the slots on the chassis.
2. Press the bezel until the release tabs click into place.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
