Internal Antenna
Removing internal antenna (Location 1)
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the WLAN card.
About this task

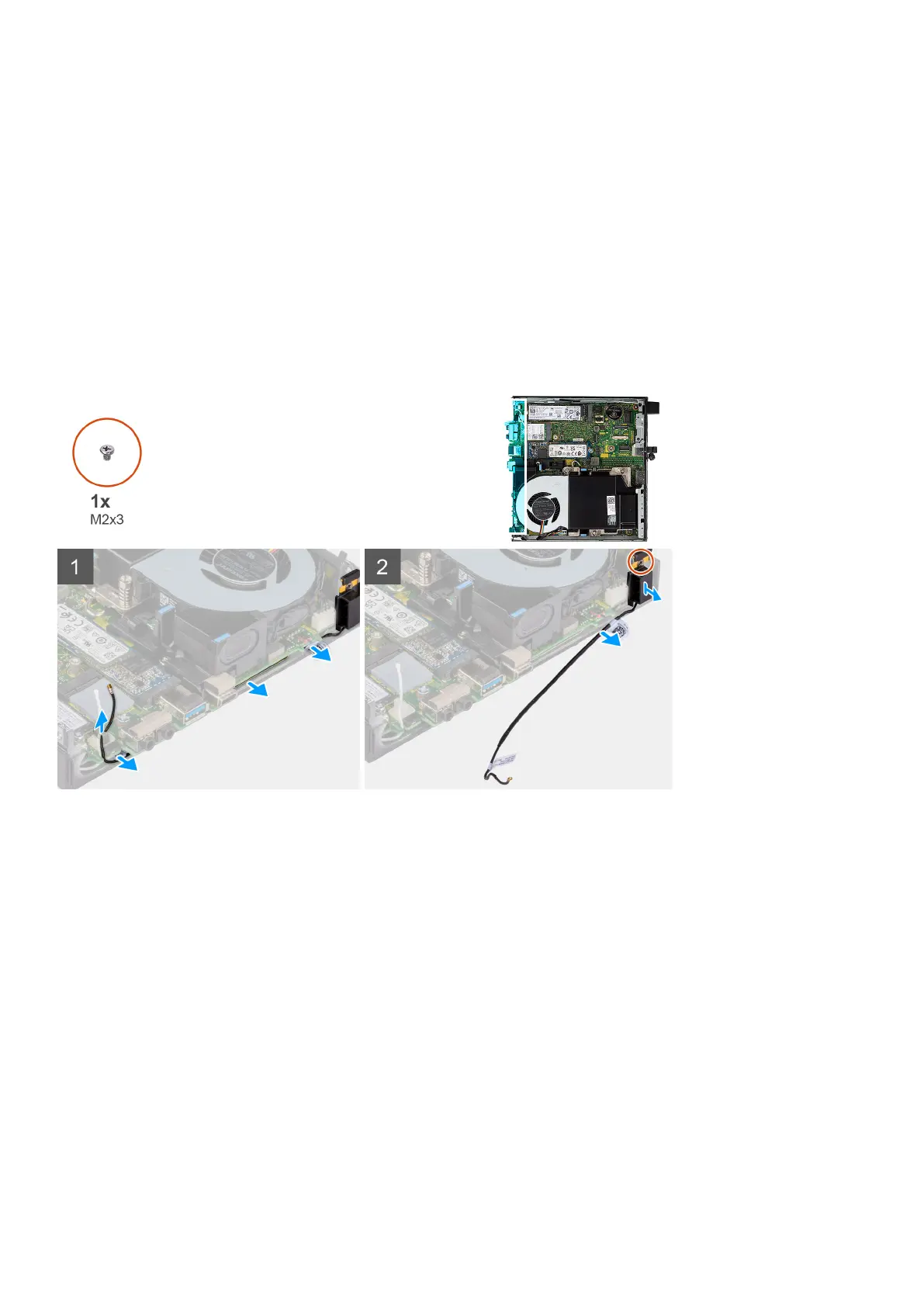

The following images indicate the location of an internal antenna and provide a visual representation of the removal procedure.
Steps
1. Unroute the black antenna-cable from the routing guides under the EMI shielding.
2. Remove the screw (M3x3MM) that secures the internal antenna assembly to the chassis.
3. Lift the internal antenna assembly away from the chassis.
Installing internal antenna (Location 1)
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of an internal antenna and provide a visual representation of the removal procedure.
42
Removing and installing components
