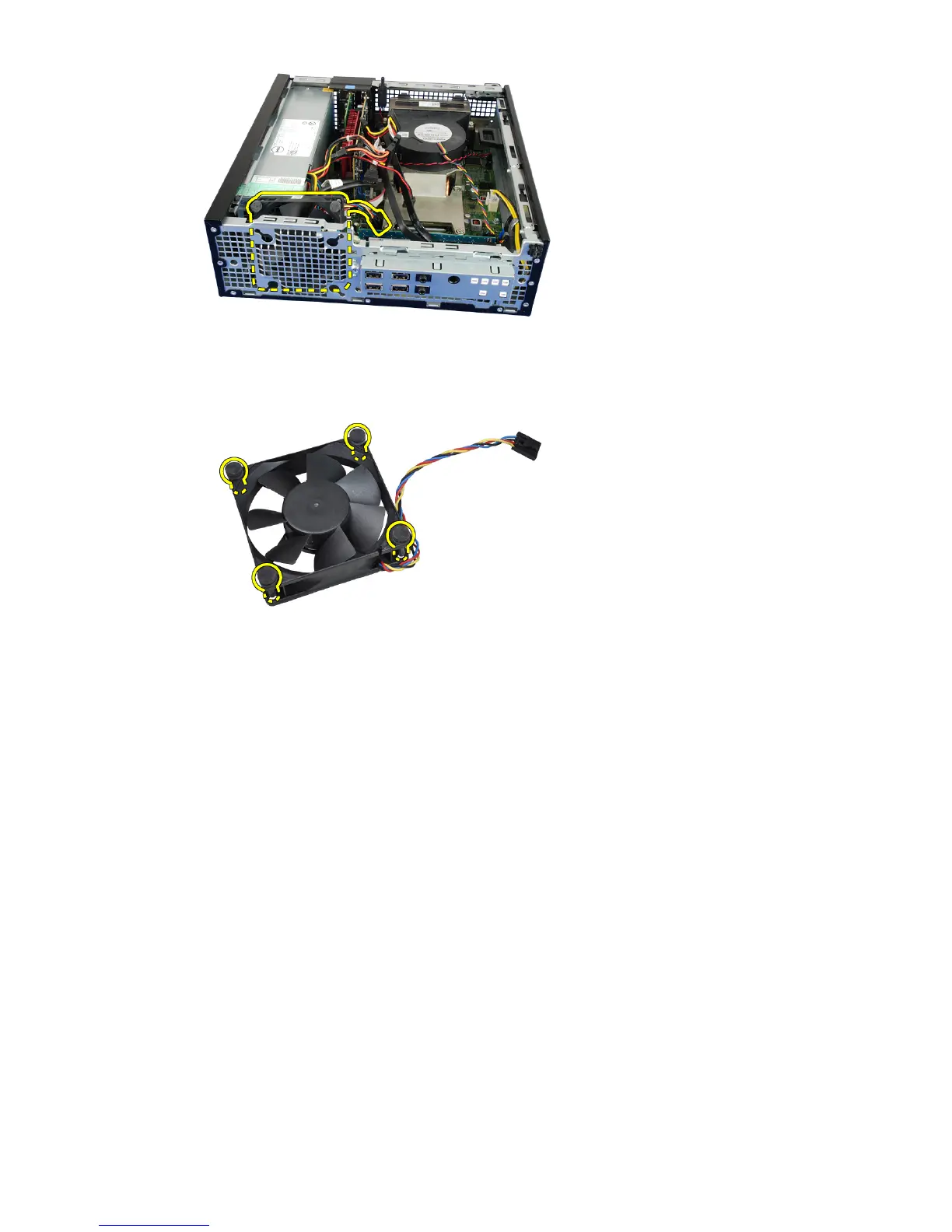

9. Gently pry up the grommets from the system fan and remove it.
Installing The System Fan
1. Insert the four grommets into the system fan.
2. Place the system fan in the chassis.
3. Pass the four grommets through the chassis and slide outward along the
grooves to secure them in place.
4. Connect the fan cable to the system board.
5. Install the
fan shelter
.
6. Install the
drive cage
.
7. Install the
front bezel
.
8. Install the
cover
.
9. Follow the procedures in
After Working Inside Your Computer
.
36
