Steps

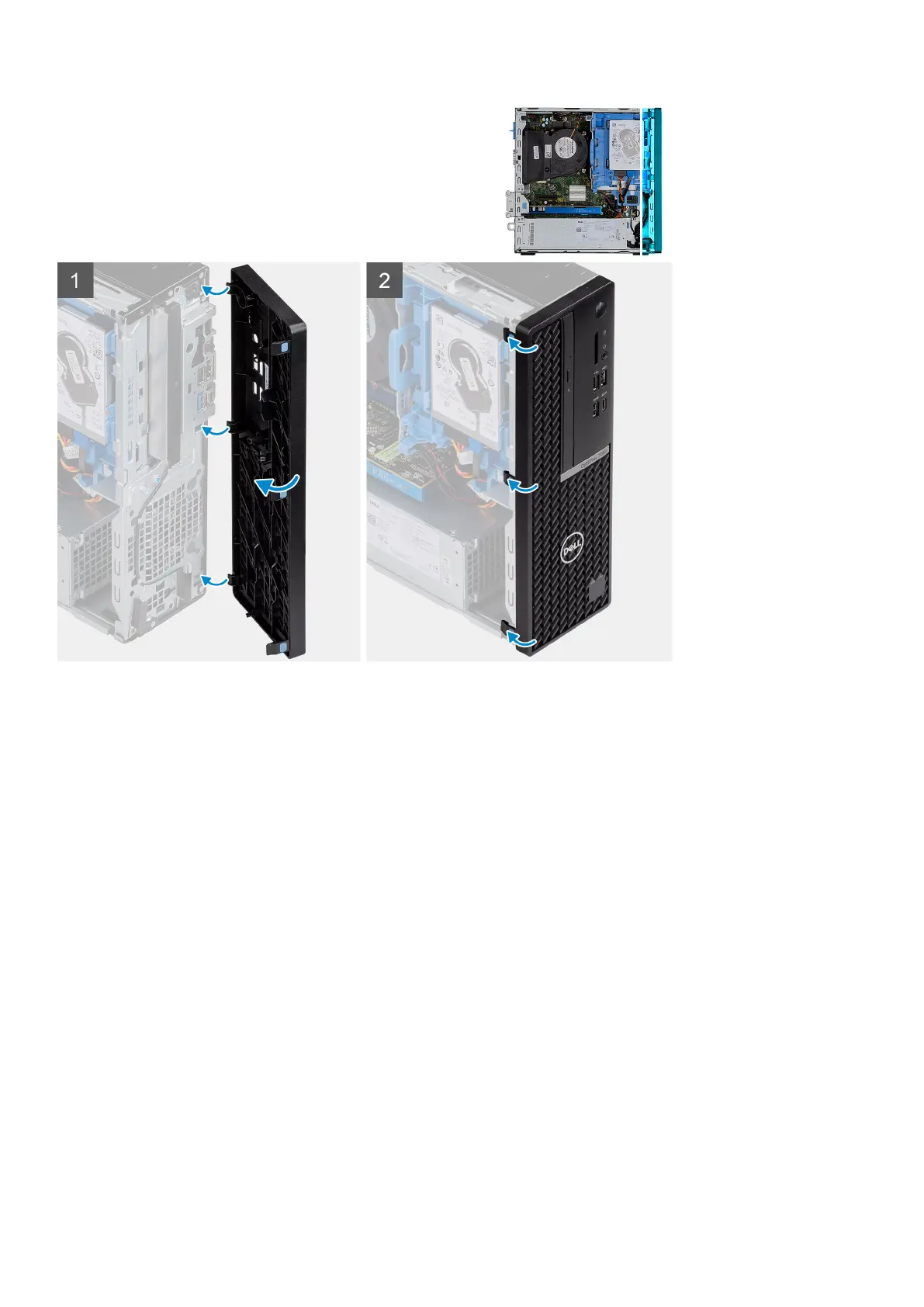

1. Align the tabs from the right portion of the front bezel with the slots on the system chassis.
2. Move the bezel towards the system until the three tabs from the left portion of the bezel snap onto the chassis securing the bezel in
place.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
Hard-drive assembly
Removing the 2.5 in. hard-drive assembly
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the front bezel.
About this task
The following images indicate the location of the 2.5 in. hard-drive assembly and provide a visual representation of the removal procedure.
Field service information
