Removing and installing components
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
Recommended tools
The procedures in this document may require the following tools:
● Phillips #0 screwdriver
● Phillips #1 screwdriver
● Plastic scribe-Recommended for field technician
Screw List
The following table shows the screw list and the images for different components.

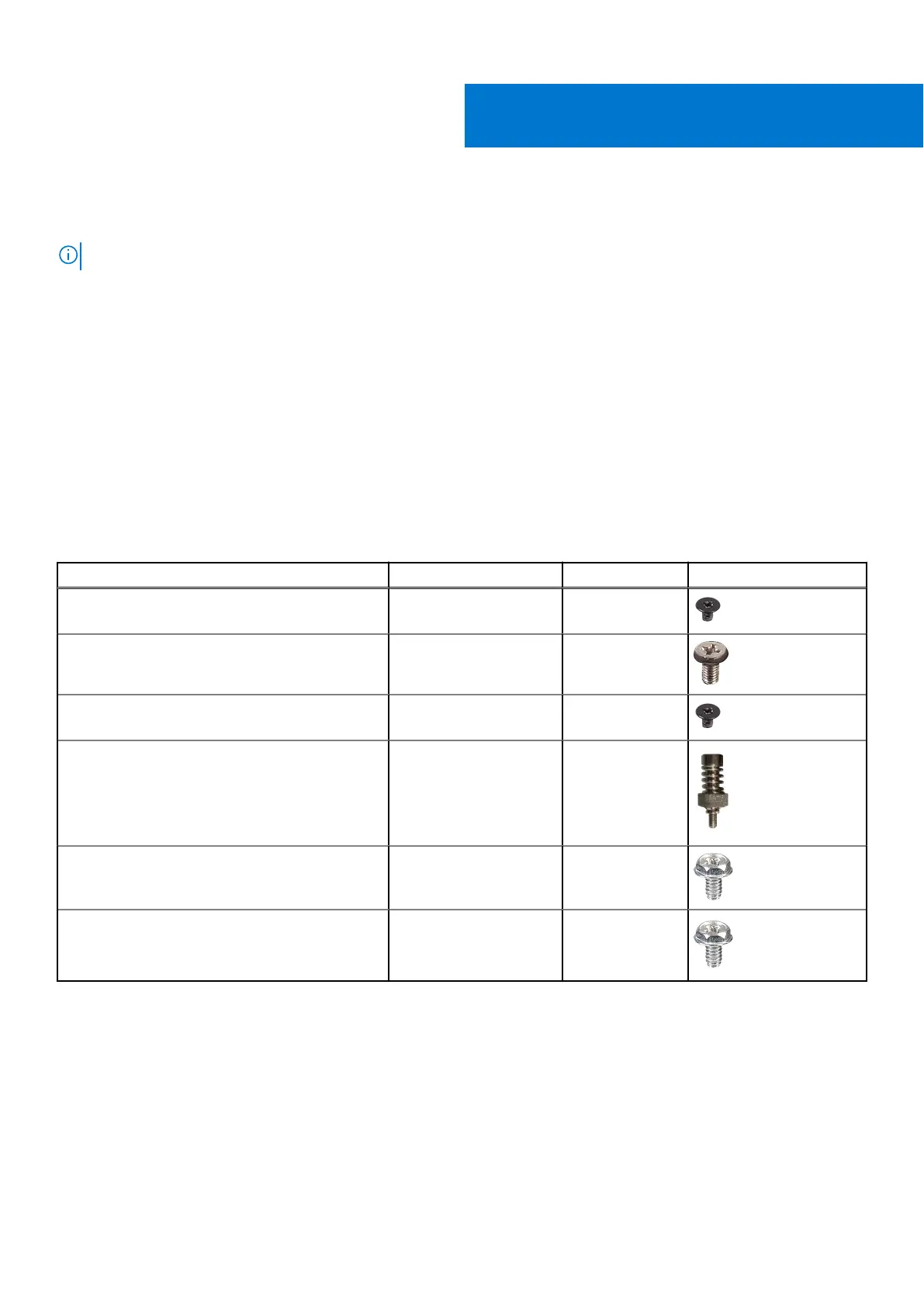

Table 1. Screw list
Component Screw type Quantity Image
M.2 2230/2280 solid-state drive M2x3 1
SD-card reader M3x5 2
WLAN card M2x3 1
Fan and heatsink assembly Captive screws 4
Power-supply unit 6x32 3
System board #6-32 4
2
10 Removing and installing components
