Dell OptiPlex 990 Mini-Tower - 5 Optical Drive; Removing the Optical Drive

5
Optical Drive
Removing the Optical Drive
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the cover .
3. Remove the front bezel .

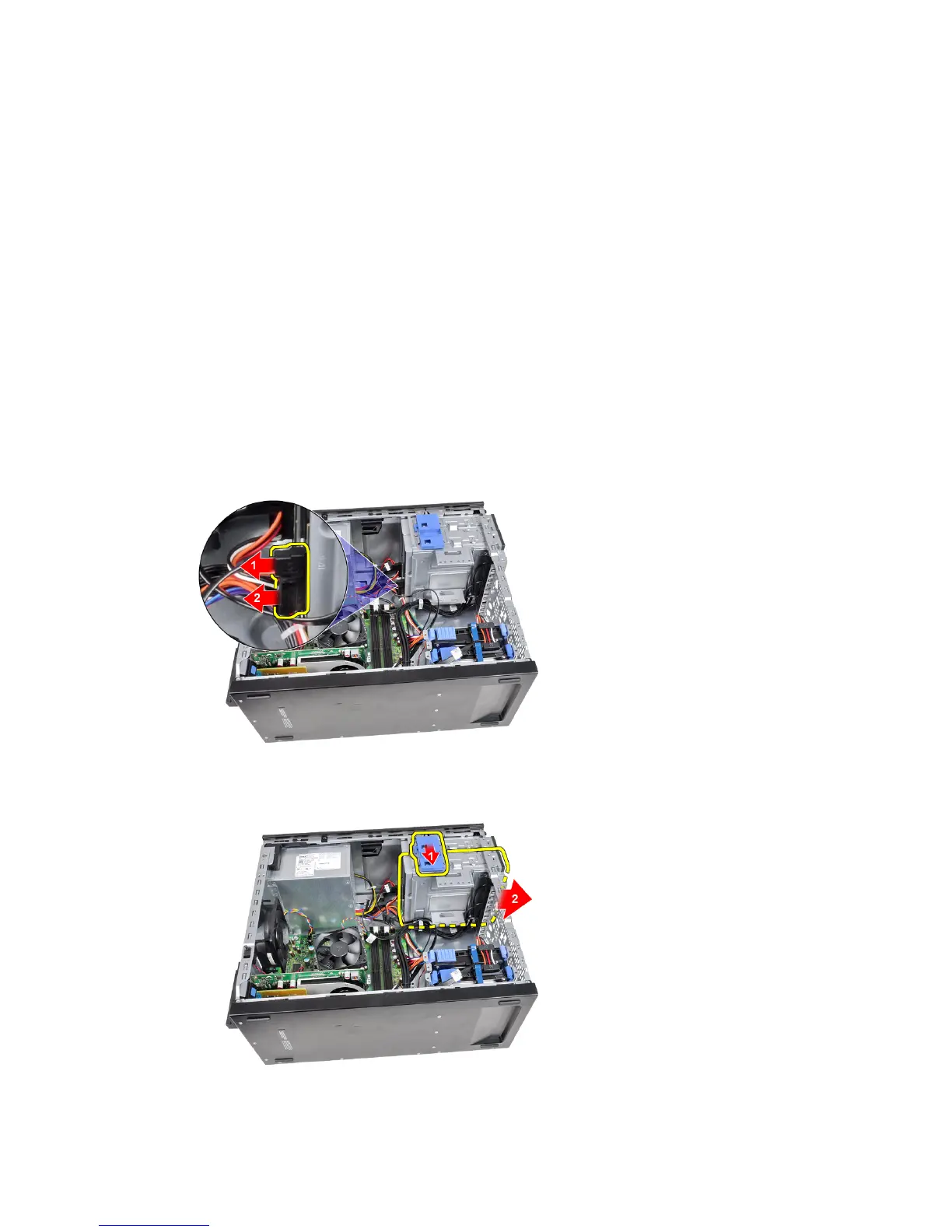

4. Remove the data cable and power cable from the back of the optical drive.
5. Slide down the optical-drive latch and then push the optical drive from the
back towards the front of the computer.
6. Repeat steps 4 and 5 to remove the second optical drive (if available).
19
