Chassis Intrusion Switch
Removing The Chassis Intrusion Switch
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the cover .

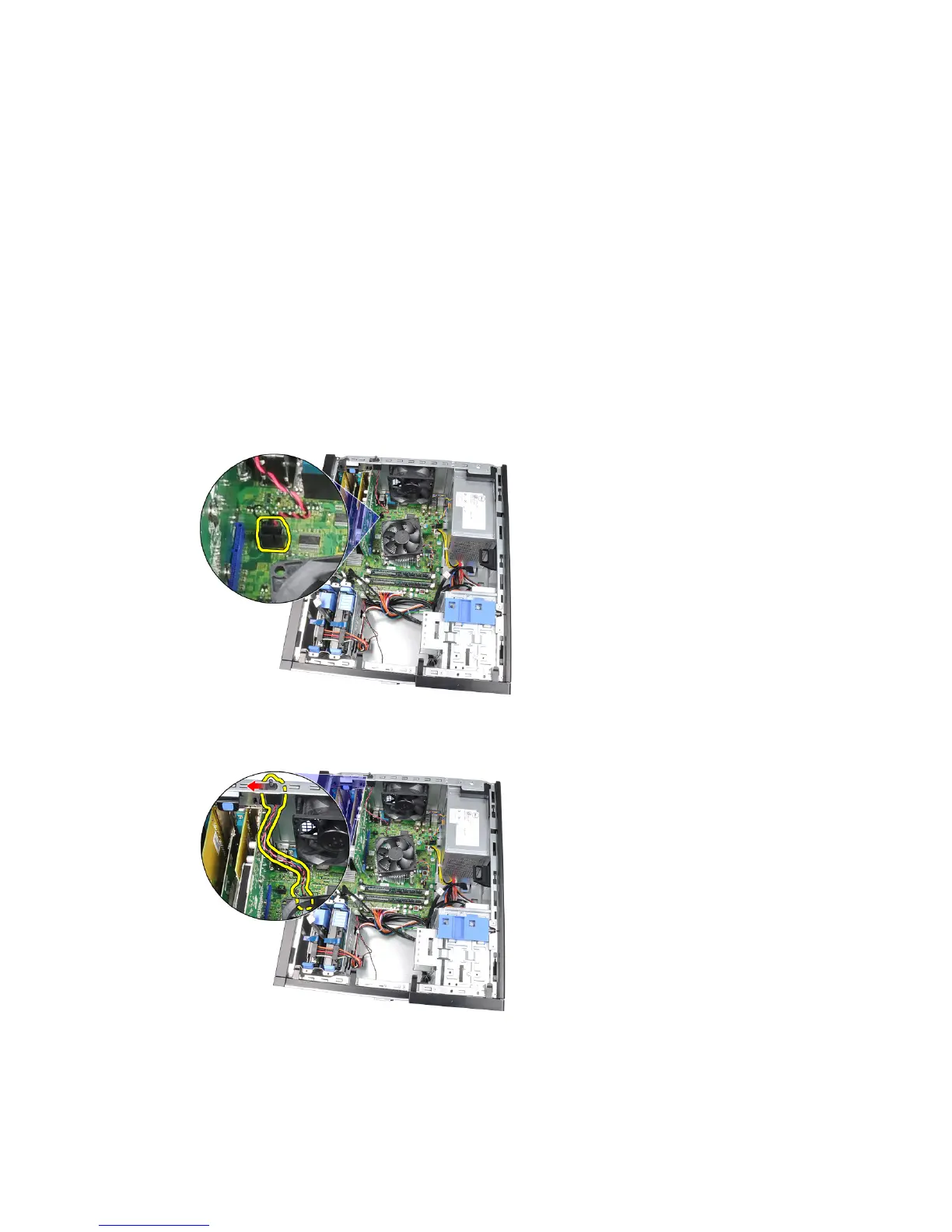

3. Disconnect the intrusion switch-cable from system board.
4. Slide the intrusion switch toward the chassis bottom and remove it from the
system board.
