Dell OptiPlex XE - Removing the Heat-Sink Fan

Back to Contents Page

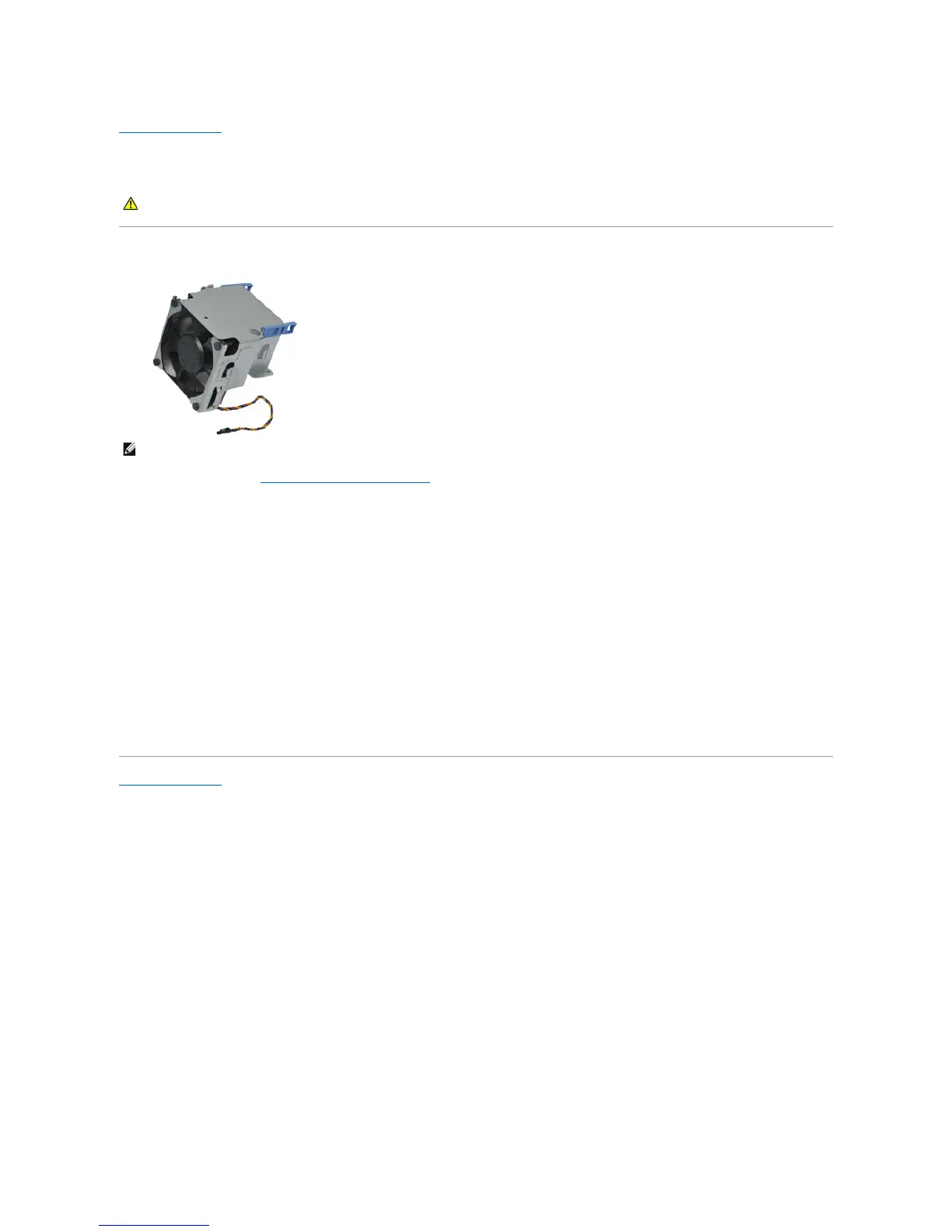

Heat-Sink Fan
Dell™OptiPlex™XEServiceManual—Desktop
Removing the Heat-Sink Fan
1. Follow the procedures in Before Working Inside Your Computer.
2. Release the 12V power cable from its routing clip.
3. Disconnect the heat-sink fan cable from its connector on the system board.
4. Remove the screws that secure the heat-sink fan to the heat sink assembly.
5. Remove the heat-sink fan from the computer.
Replacing the Heat-Sink Fan
To replace the heat-sink fan, perform the above steps in reverse order.
Back to Contents Page
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTE: You may need to install Adobe®Flash®Player from Adobe.com in order to view the illustrations below.
