Dell P104F002 - Removing the M.2 2230 Solid-State Drive Holder

About this task

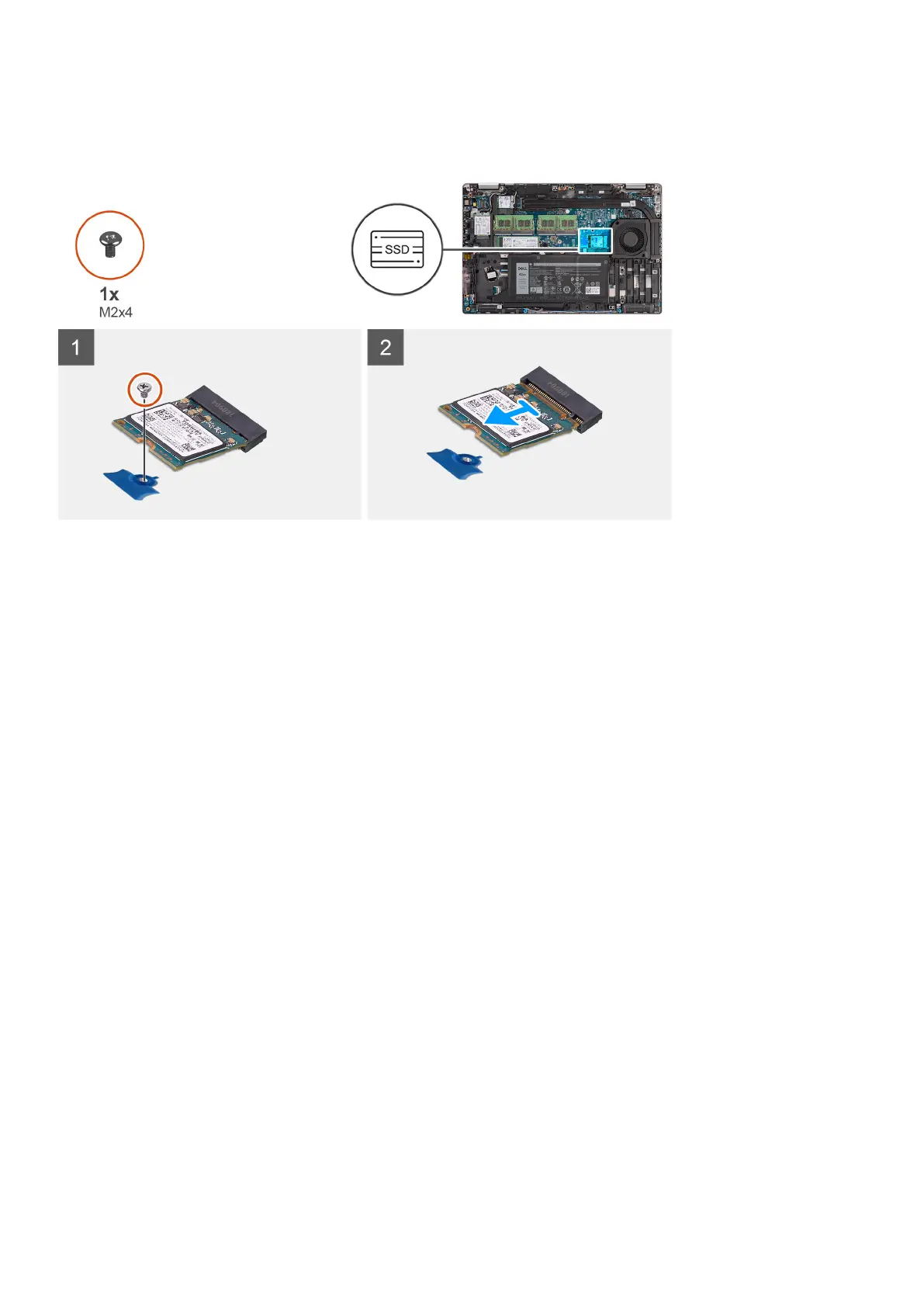

The following images indicate the location of the M.2 2230 solid-state drive and provide a visual representation of the removal
procedure.
Steps
1. Remove the single screw (M2x4) that secures the M.2 2230 solid-state drive to the system board.
2. Slide and remove the M.2 2230 solid-state drive from the solid-state drive slot on the system board.
Removing the M.2 2230 solid-state drive holder
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Enter service mode.
3. Remove the SIM card.
4. Remove the microSD card.
5. Remove the base cover.
About this task
The following images indicate the location of the M.2 2230 solid-state drive holder and provide a visual representation of the
removal procedure.
